Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

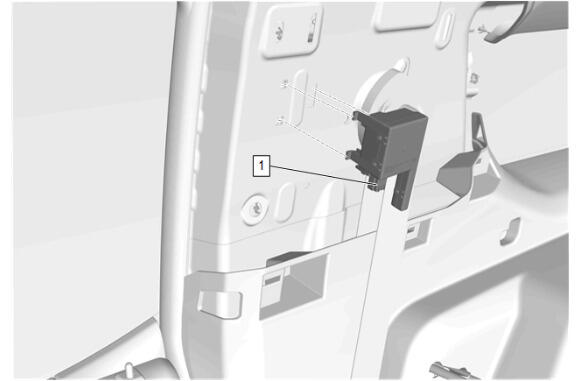

Remote Function Actuator Module (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector and install the wiring harness retainers as necessary.

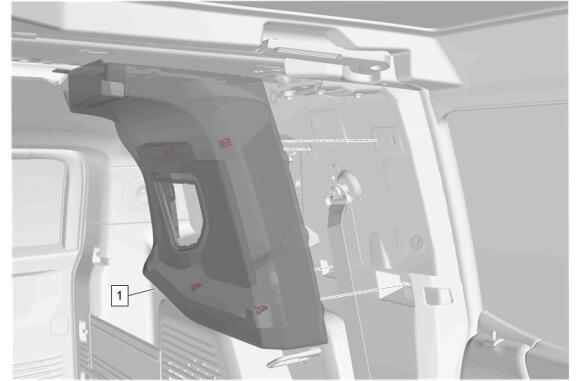

Body Side Rear Window Garnish Molding - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

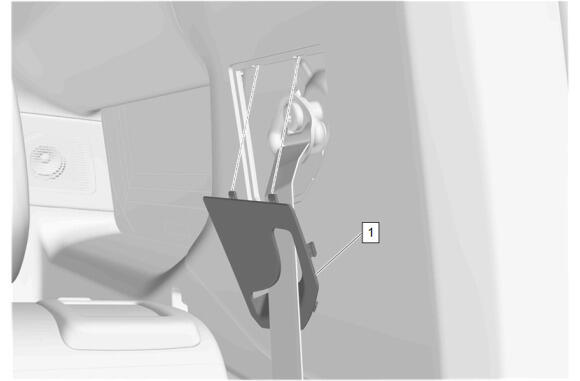

Rear Seat Belt Opening Bezel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the wiring harness retainer.
Back Body Opening Side Molding (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

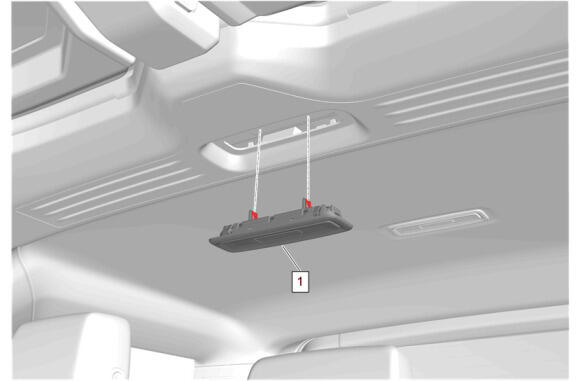

Rear Seat Position Center Reading and Courtesy Lamp (1) - Install
Apply pressure upward on the rear seat position center reading and courtesy lamp (1) to engage the retaining tabs.
Fold the rear seat to the full upward position.
