Installation Procedure

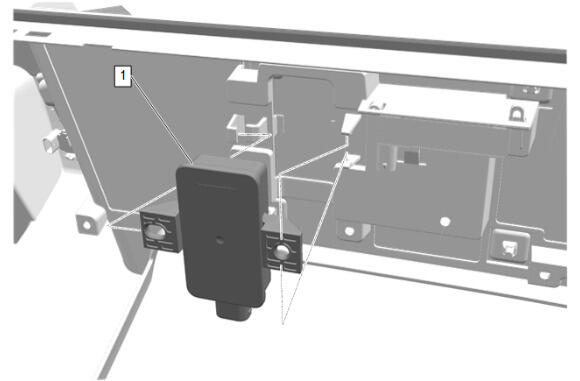

  1. GM5837731Courtesy of GENERAL MOTORS COMPANY

    Trailer Tire Pressure Indicator Module (1) - Install

  2. GM5835373Courtesy of GENERAL MOTORS COMPANY

    Verify that the trailer tire pressure indicator module is secured by the two retaining clips (1).

  3. Connect the electrical connector.
  4. GM6126883Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)

  5. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  6. Perform the trailer tire pressure sensor manual learn. Trailer Tire Pressure Sensor Manual Learn
