Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

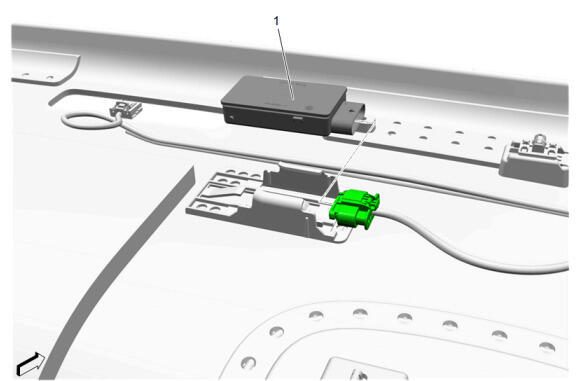

UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

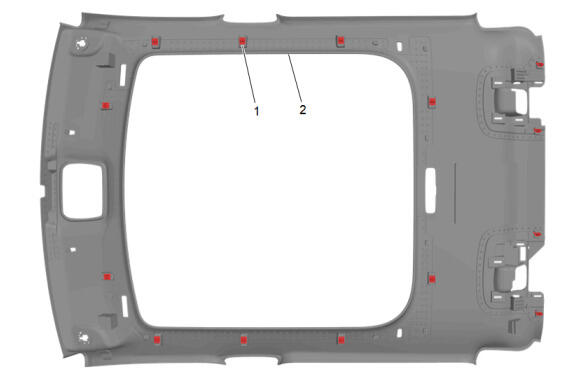

Headlining Trim Panel(2) - Install
Courtesy of GENERAL MOTORS COMPANY

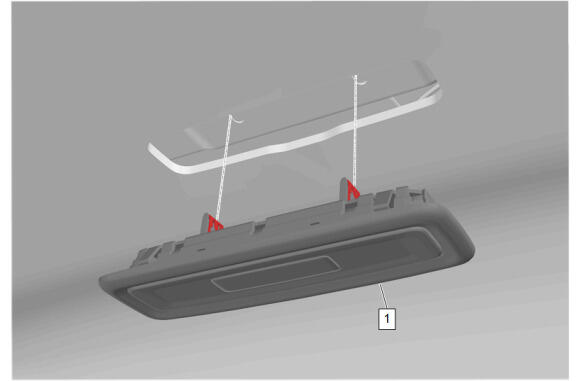

Headlining Trim Panel Retainer Plate- Left Side and Right Side(1) - Install [2x]
Close the latch for the rear window.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Body Lock Pillar Upper Trim Panel Bolt- Right Side(3) - Install and tighten - Fastener Specifications
Align the retaining clips (2) with the slots in the body and press the body side rear window garnish molding (1) into place.

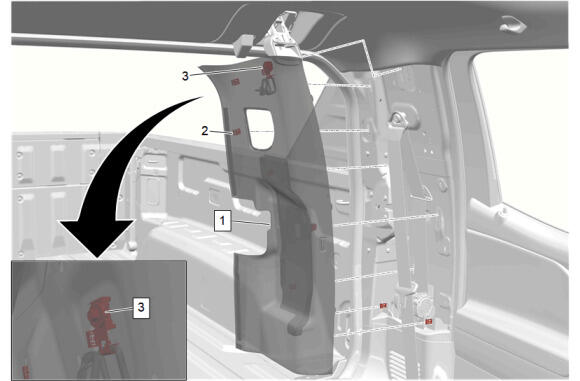

Body Side Rear Window Garnish Molding- Right Side(1) - Install
Courtesy of GENERAL MOTORS COMPANY

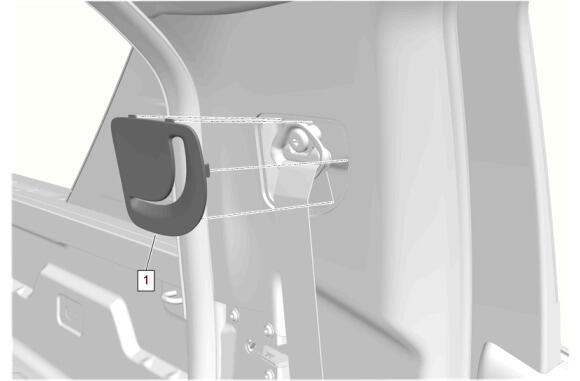

Rear Seat Belt Opening Bezel- Right Side(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Body Lock Pillar Upper Trim Panel Bolt- Left Side(3) - Install and tighten - Fastener Specifications
Align the retaining clips (2) with the slots in the body and press the body side rear window garnish molding (1) into place.
Body Side Rear Window Garnish Molding- Left Side(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Belt Opening Bezel- Left Side(1) - Install
Courtesy of GENERAL MOTORS COMPANY

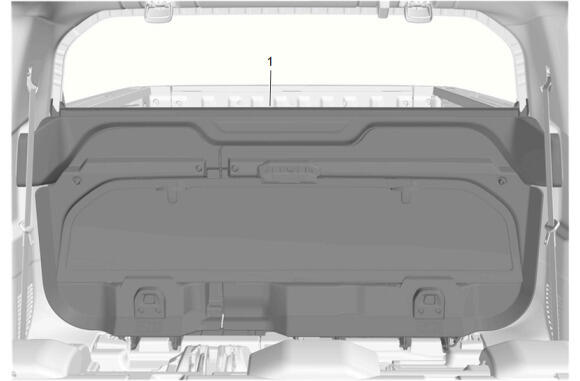

Close the midgate (1).
Courtesy of GENERAL MOTORS COMPANY

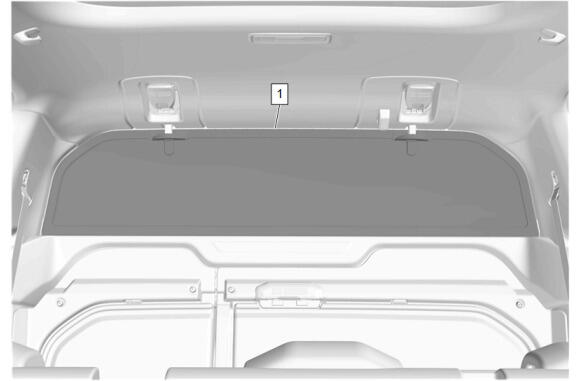

Rear Window(1) - Install
Courtesy of GENERAL MOTORS COMPANY

Fold the left and right rear seat back cushions (1) up and into the locked position.
Courtesy of GENERAL MOTORS COMPANY

Fold the left and right rear seat cushions (1) up and into the locked position.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

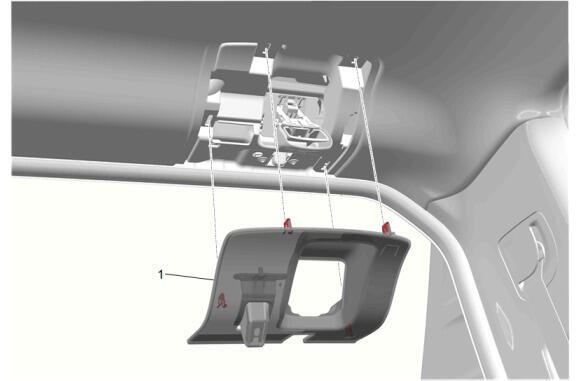

Rear Seat Position Center Reading and Courtesy Lamp(1) - Install
