Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

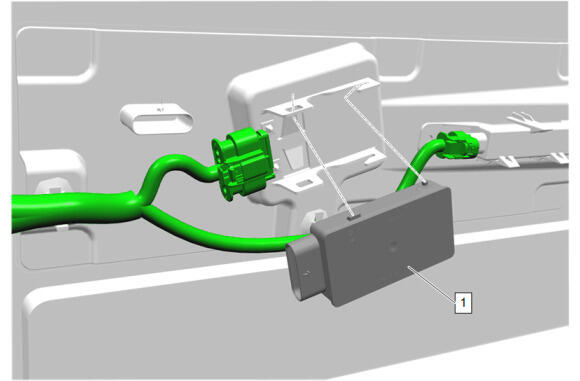

UHF Low Energy Remote Control Access Sensor Transceiver(1) - Install
Slide UHF Low Energy Remote Control Access Sensor Transceiver (1) into the bracket and secure the retaining tabs.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

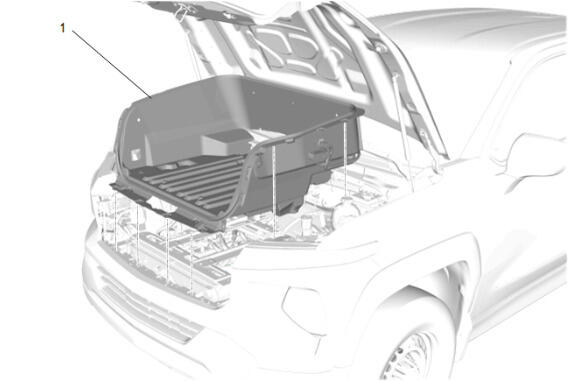

Front Trim Finish Compartment(1) - Install - Front Trim Finish Compartment Removal and Installation
