Installation Procedure
Connect the electrical connector.

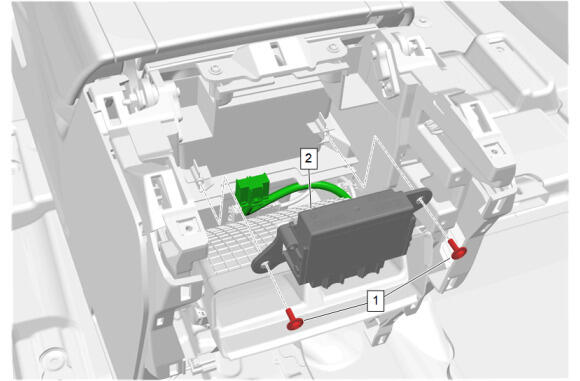

- UHF Short Range Low Energy Remote Control Access Transceiver(2) - Install
- UHF Short Range Low Energy Remote Control Access Transceiver Bolt(1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.

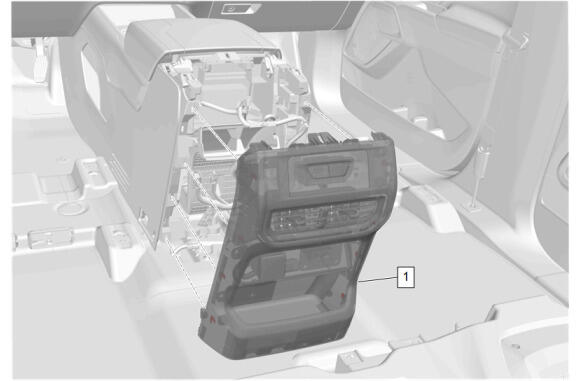

- Front Floor Console Rear Trim Panel(1) - Install

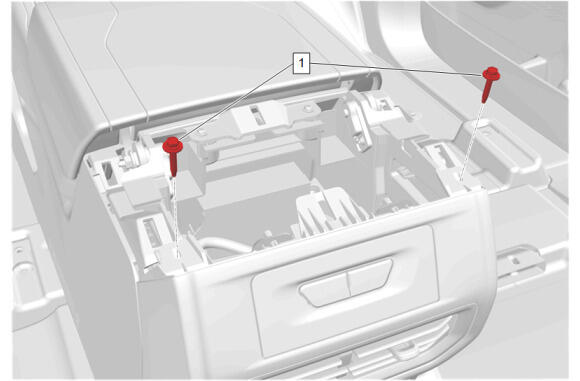

Front Floor Console Rear Cover Bolt(1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.

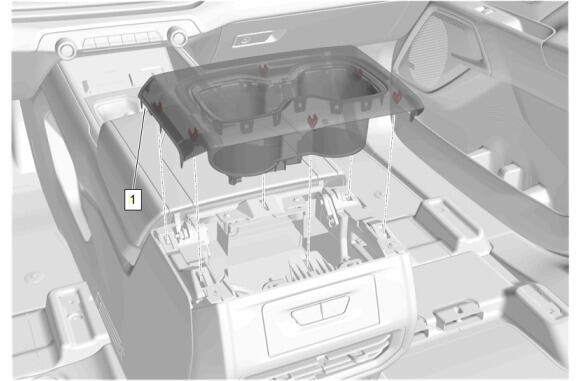

- Front Floor Console Rear Cup Holder(1) - Install

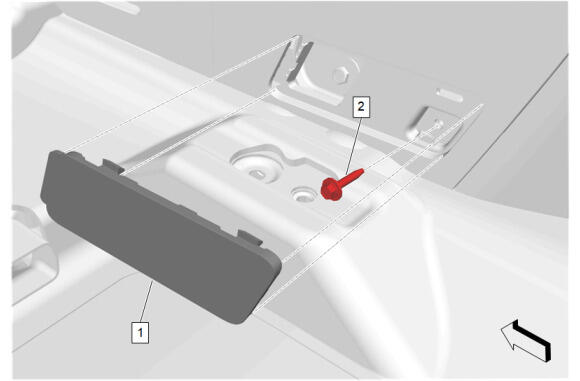

Front Floor Console Rear Cover Bolt- Left Side and Right Side(2) - Install and tighten [2x] - Fastener Specifications
- Front Floor Console Bolt Access Hole Cover- Left Side and Right Side(1) - Install [2x]
CAUTION:
Refer to Fastener Caution .
