Repair Procedures: Installation

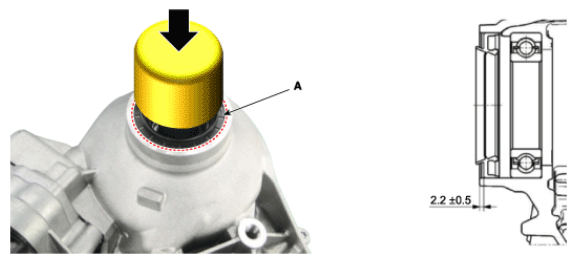

  1. Press in the new radial seal ring (A).
    G11340593Courtesy of

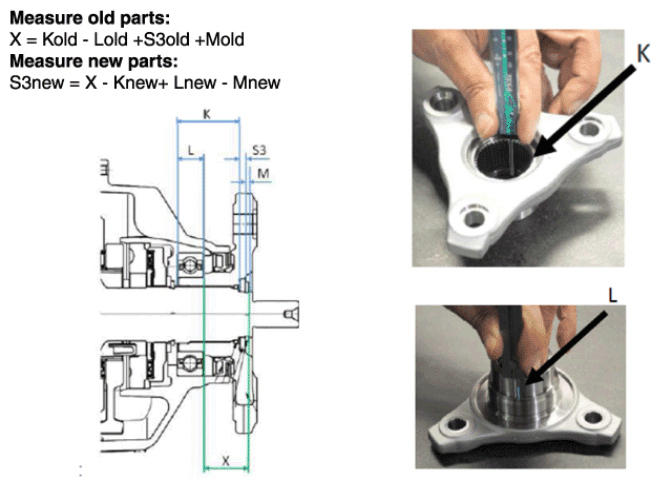

  2. Measure and choose the proper shim as follows.
    G11340594Courtesy of
    NOTE: Shim kit (only as a kit available)
    2, 9 mm M0003830-21 3, 5 mm M0003830-15
    3, 0 mm M0003830-20 3, 7 mm M0003830-13
    3, 1 mm M0003830-19 3, 8 mm M0003830-12
    3, 2 mm M0003830-18 3, 9 mm M0003830-11
    3, 3 mm M0003830-17 4, 0 mm M0003830-10
    3, 4 mm M0003830-16 4, 1 mm M0003830

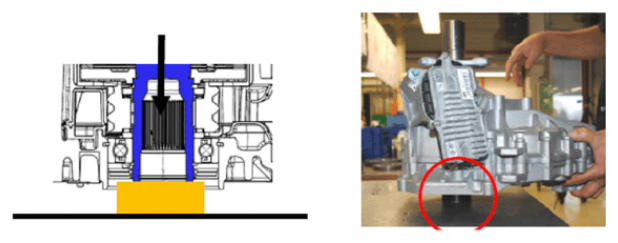

  3. Retain the main shaft (not retain the housing).
    G11340595Courtesy of
  4. Press in the new flange (A).
    G11340596Courtesy of
  5. Press in the O-ring (A).
    G11340597Courtesy of

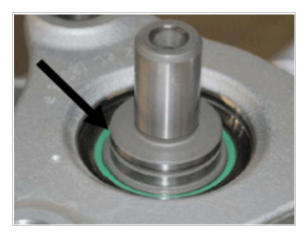

  6. Check if the O-ring is positioned properly inside the slot.
    G11340598Courtesy of

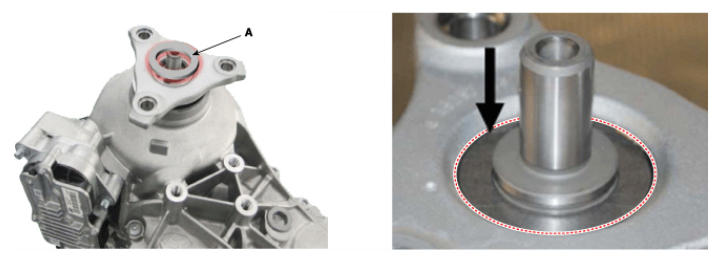

  7. Put in the new shim (A) (procedure 2), retaining ring groove must be fully visible.
    G11340599Courtesy of
  8. Assemble the retaining ring (A).
    G11340600Courtesy of
  9. Fill the lower edge of the filler plug (installed transfer case) with the oil.

    Tighten the plug to 60 Nm (6.0 kgf.m, 44.1 lb-ft).

    Oil type:  Shell TF0870

    CAUTION:
    • Replace gasket before reinstalling the filler plug.
    G11340601Courtesy of
  10. Install the transfer case in the vehicle.

    (Refer to 4 Wheel Drive (AWD) System - "TRANSFER CASE ASSEMBLY ")

CAUTION:
  • After the installation, start the engine and then check if there are any leakages from the transfer case.
