Repair Procedures: Inspection

Disconnect the negative (-) battery terminal.
Remove the overhead console (A) after loosening the screws and disconnecting the connectors (B).

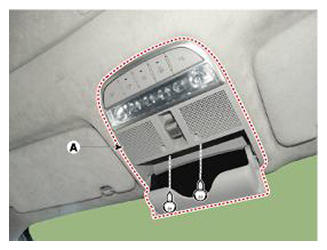

Fig 1: Removing Overhead Console With Screws
Courtesy of HYUNDAI MOTOR AMERICA

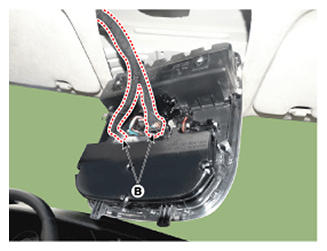

Fig 2: Removing Overhead Console With Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the hands-free MIC (A) after loosening the mounting screws.

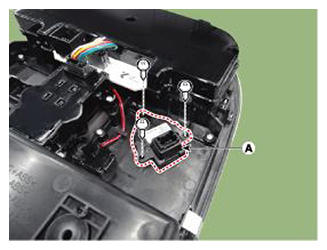

Fig 3: Removing Hands-Free MIC With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the No. 2 and No. 1, 3, 4 terminals.
