Assist Door Module (ADM)

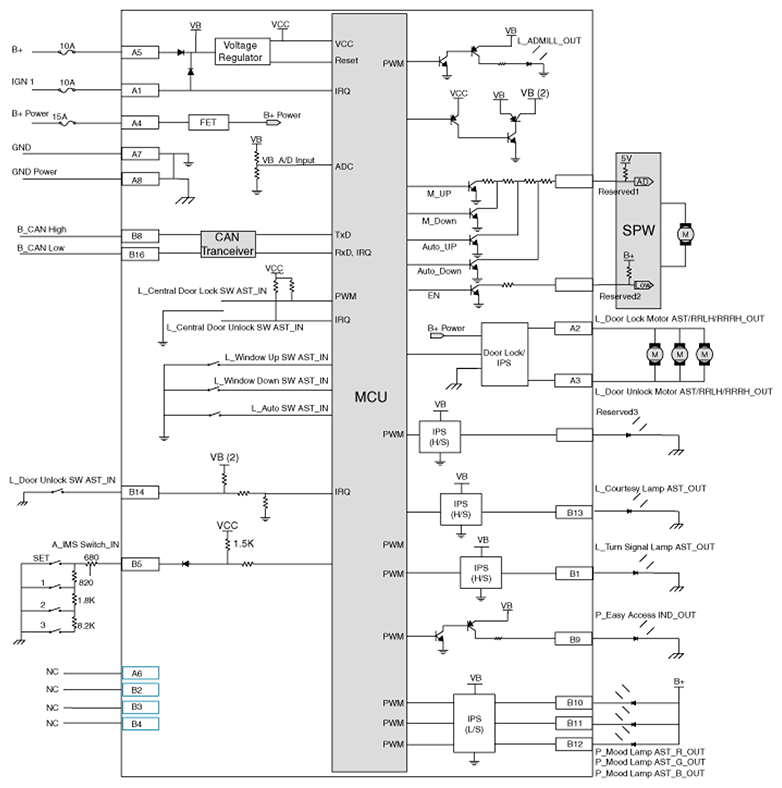

Fig 1: Assist Door Module (ADM) Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
