Rear Door Module (RRDM/RLDM)

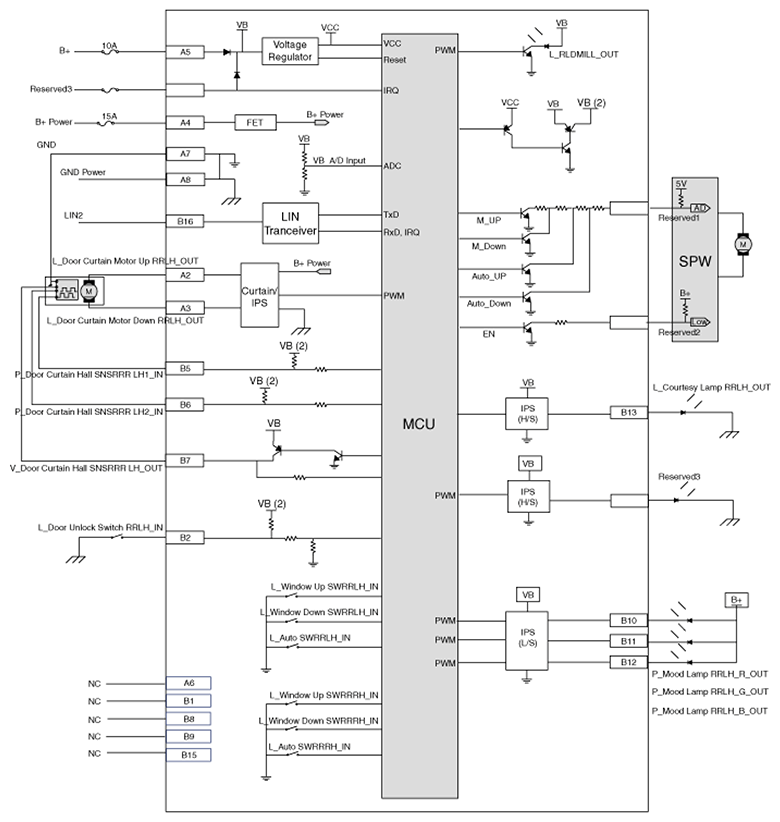

Fig 1: Rear Door Module (RRDM/RLDM) Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
