Circuit Diagram

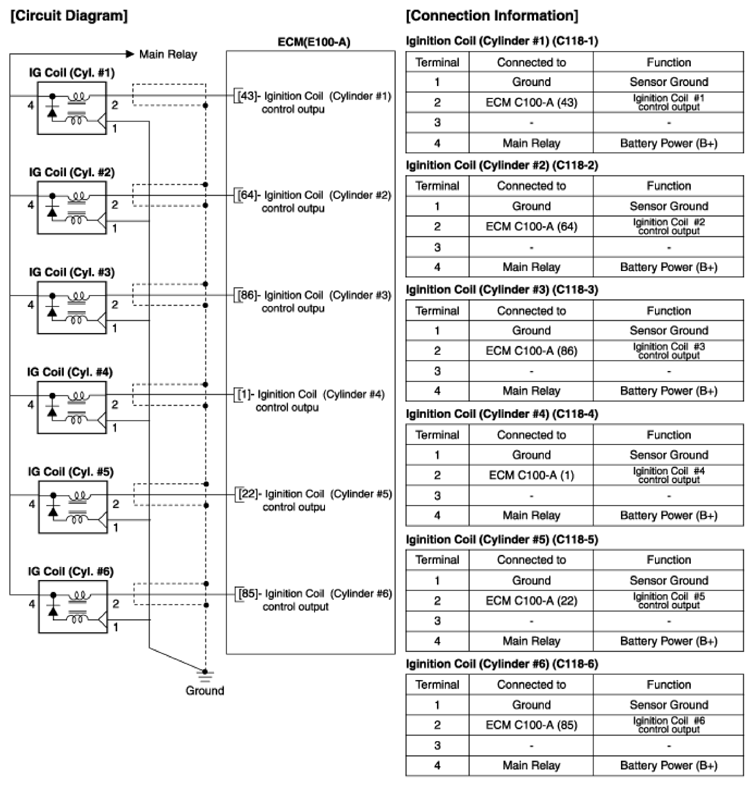

Fig 1: Ignition Coil Circuit Diagram
G11411983Courtesy of HYUNDAI MOTOR AMERICA

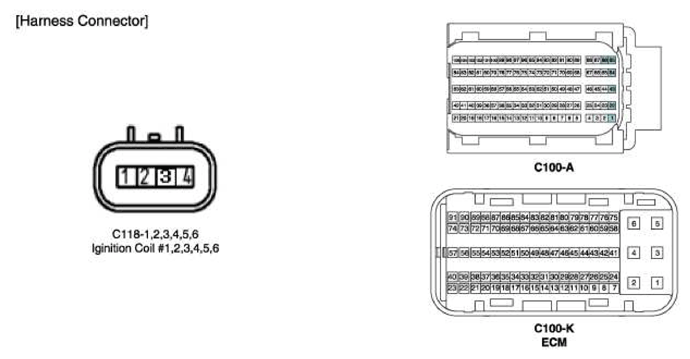

Fig 2: Ignition Coil Harness Connector
G11411984Courtesy of HYUNDAI MOTOR AMERICA
