Driver Memory Power Seat Module (DPSM)

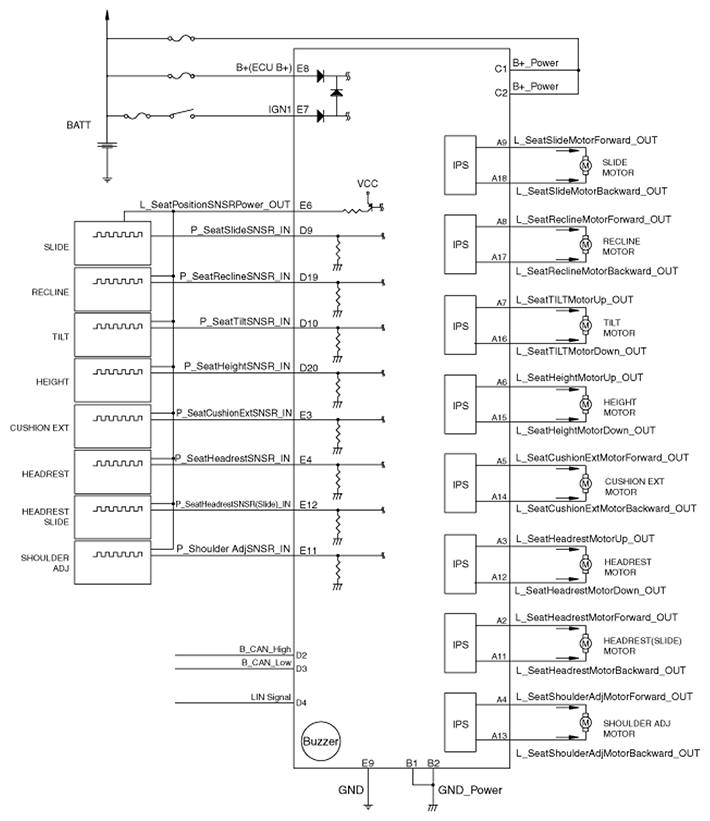

Fig 1: Driver Memory Power Seat Module (DPSM) Circuit Diagram
G11406118Courtesy of HYUNDAI MOTOR AMERICA
