BSD Unit Alignment

WARNING: This page is about a different car, the 2016 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
Select "BSD Radar Calibration" procedure in BSD system.

Fig 1: Screen Display - Select BSD Radar Calibration Procedure
Courtesy of KIA MOTORS AMERICA, INC.
Perform the "BSD Radar Calibration" procedure according to the GDS screen message.

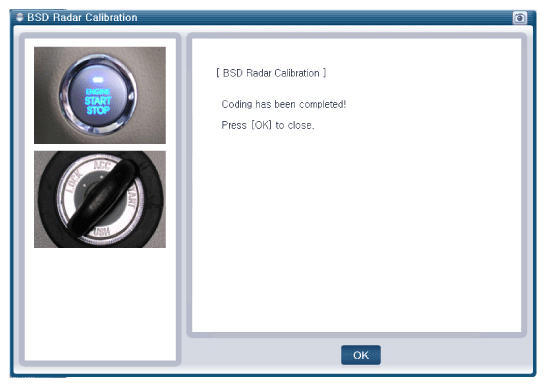

Fig 2: Screen Display - Perform BSD Radar Calibration

Courtesy of KIA MOTORS AMERICA, INC.
