System Calibration

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: This menu is applied only if vehicle has a Steel suspension

Select "AFLS" menu after selecting a vehicle.
Select "Sensor initializing-Non ECS" if vehicle has a Steel suspension

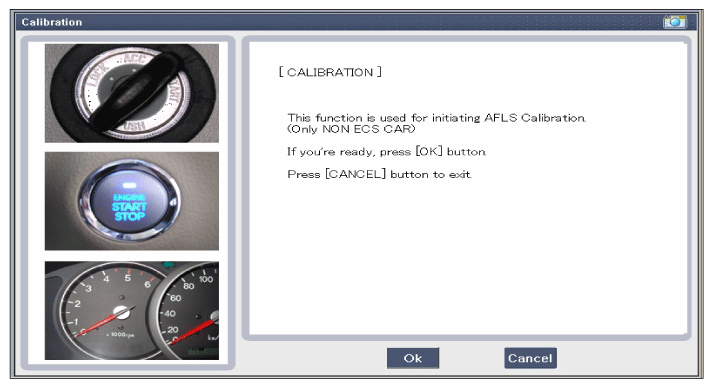

Fig 1: Screen Display - System Calibration
Courtesy of KIA MOTORS AMERICA, INC.
When "System calibration" is done, display below.

Fig 2: Screen Display - Test Completed
Courtesy of KIA MOTORS AMERICA, INC.
When "System calibration" is not done, display as shown below.

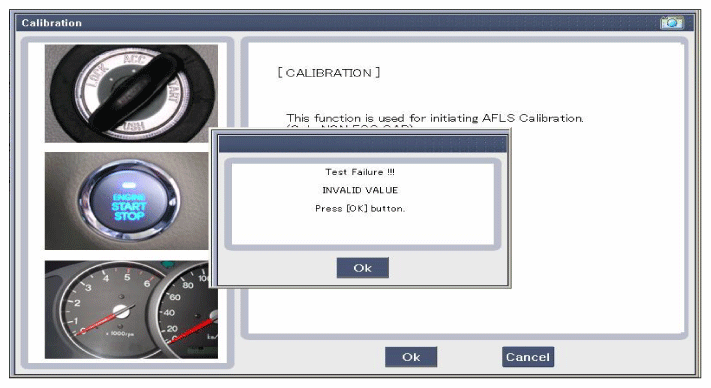

Fig 3: Screen Display - Test Failure

Courtesy of KIA MOTORS AMERICA, INC.
