Neutralization Status Check

WARNING: This page is about a different car, the 2017 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

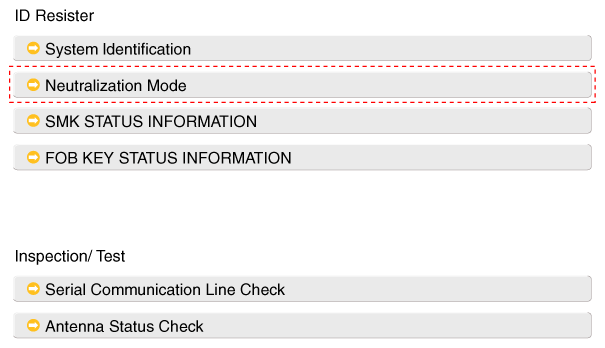

G11341311Courtesy of

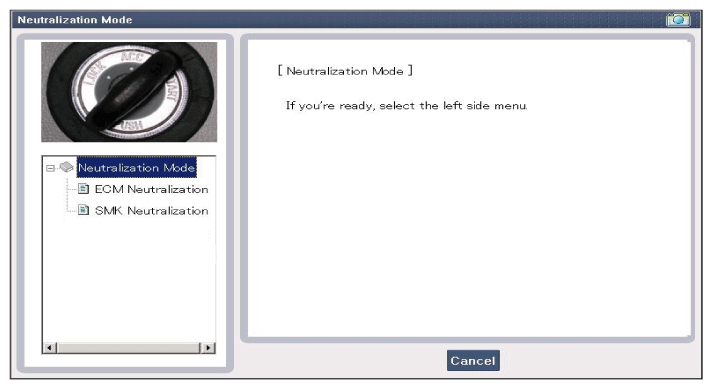

G11341312Courtesy of

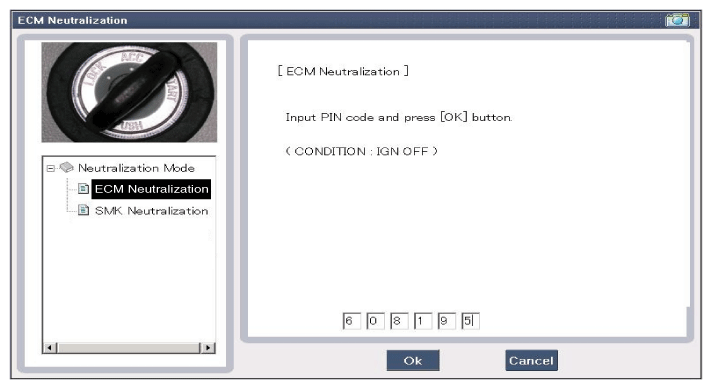

G11341313Courtesy of

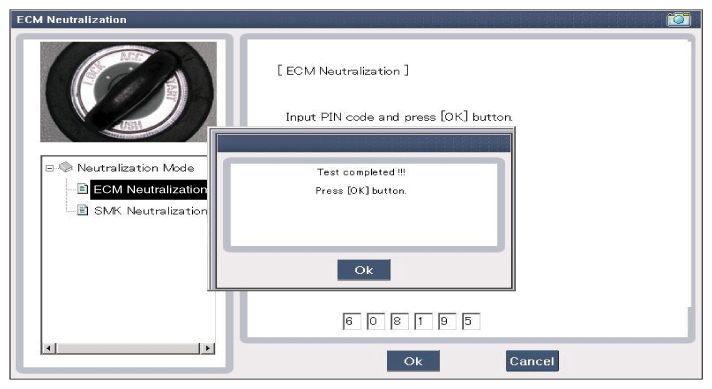

G11341314Courtesy of

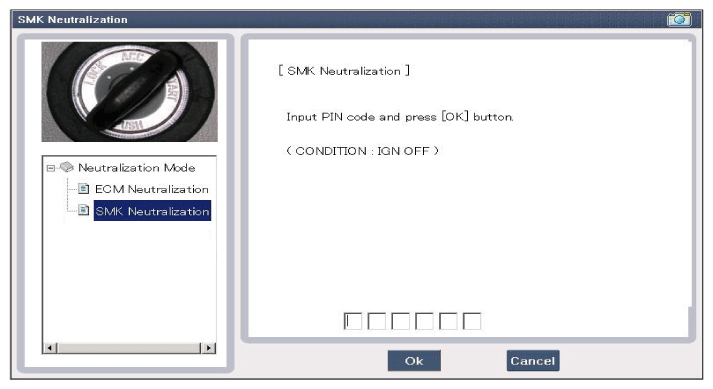

G11341315Courtesy of
G11341316Courtesy of

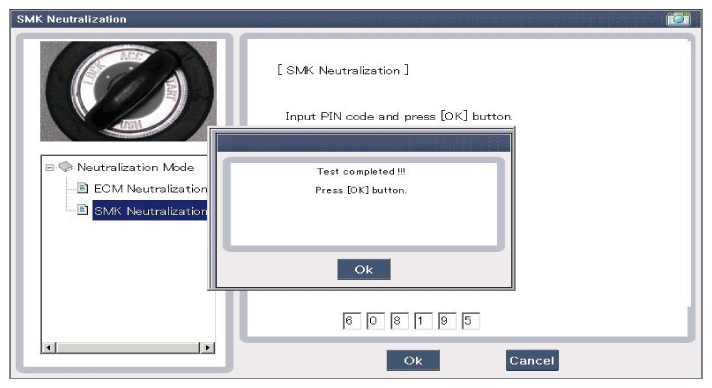

G11341317Courtesy of
