Repair Procedure: Installation

WARNING: This page is about a different variant/trim than selected.

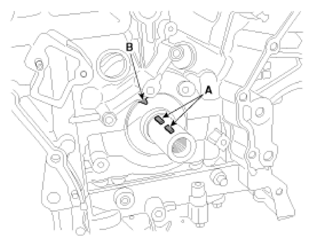

The key (A) of crankshaft should be aligned with the timing mark (B) of timing chain cover. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.

Fig 1: Crankshaft Key And Timing Mark Location
Courtesy of HYUNDAI MOTOR AMERICA

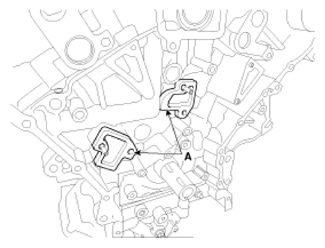

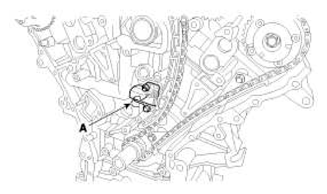

Install the timing chain auto tensioner assembly adapter (A).

Fig 2: Timing Chain Auto Tensioner Assembly Adapter Location
Courtesy of HYUNDAI MOTOR AMERICA

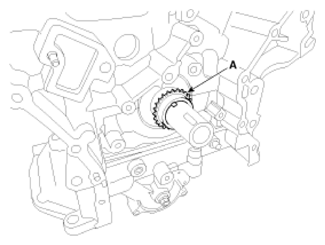

Install the crankshaft sprocket (A). (LH camshaft drive).

Fig 3: Crankshaft Sprocket Location
Courtesy of HYUNDAI MOTOR AMERICA

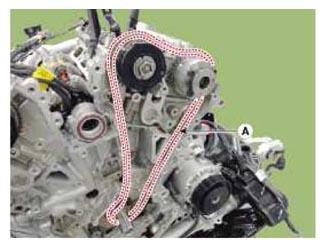

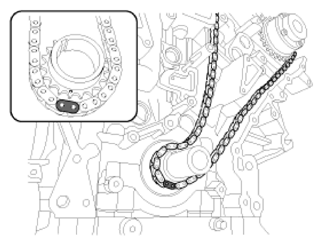

Install the LH timing chain (A).

Fig 4: LH Timing Chain Location (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: LH Timing Chain Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below.
- Crankshaft sprocket → Exhaust camshaft sprocket → Intake camshaft sprocket.
- The timing mark of each sprocket should be matched with timing mark (color link) of timing chain when installing timing chain.
Install the LH timing chain guide (A).
Tightening Torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Fig 6: LH Timing Chain Guide Location
Courtesy of HYUNDAI MOTOR AMERICA

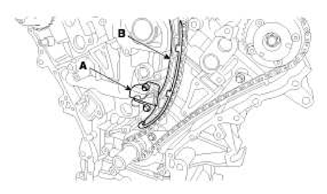

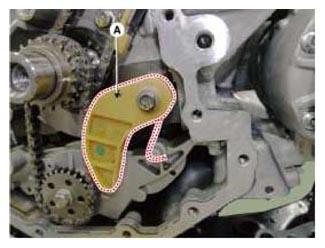

Install the LH timing chain tensioner arm (B) and LH timing chain auto tensioner (A).
Tightening Torque

A: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

B: 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb-ft)

Fig 7: LH Timing Chain Tensioner Arm And LH Timing Chain Auto Tensioner Location
Courtesy of HYUNDAI MOTOR AMERICA

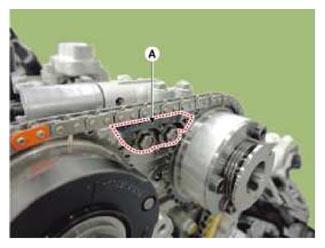

Install the timing chain cam to cam guide (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 8: Timing Chain Cam Location
Courtesy of HYUNDAI MOTOR AMERICA
Remove the LH timing chain auto tensioner stopper pin (A).

Fig 9: LH Timing Chain Auto Tensioner Stopper Pin Location
Courtesy of HYUNDAI MOTOR AMERICA

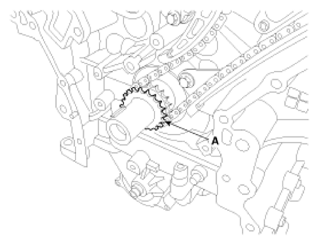

Install the crankshaft sprocket (A).

Fig 10: Crankshaft Sprocket Location
Courtesy of HYUNDAI MOTOR AMERICA

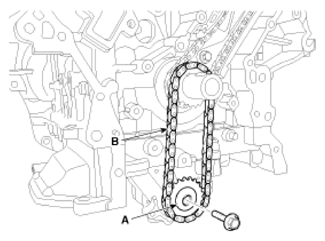

Install the oil pump chain sprocket (A) and oil pump chain (B).
Tightening Torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Fig 11: Installing Oil Pump Chain Sprocket
Courtesy of HYUNDAI MOTOR AMERICA
Install the oil pump chain tensioner assembly (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 12: Oil Pump Chain Tensioner Assembly Location
Courtesy of HYUNDAI MOTOR AMERICA

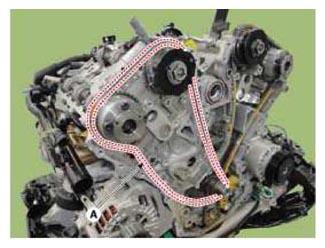

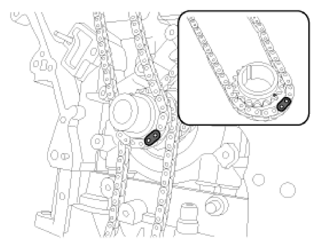

Install the RH timing chain (A).

Fig 13: RH Timing Chain Location (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 14: RH Timing Chain Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below.
- Crankshaft sprocket → Intake camshaft sprocket → Exhaust camshaft sprocket.
- The timing mark of each sprocket should be matched with timing mark (color link) of timing chain when installing timing chain.
Install the RH timing chain guide (A).
Tightening Torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Fig 15: RH Timing Chain Guide Location
Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).
Tightening Torque

A: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

B: 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb-ft)

Fig 16: RH Timing Chain Auto Tensioner And RH Timing Chain Tensioner Arm Location
Courtesy of HYUNDAI MOTOR AMERICA

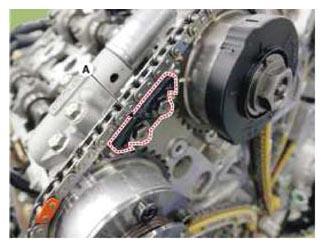

Install the RH timing chain cam to cam guide (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Fig 17: RH Timing Chain Cam To Cam Guide Location
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH timing chain auto tensioner stopper pin (A).

Fig 18: RH Timing Chain Auto Tensioner Stopper Pin Location
Courtesy of HYUNDAI MOTOR AMERICA
After rotating the crankshaft two times in regular direction (clockwise viewed from front), confirm the timing mark.
NOTE:
- Always turn the Crankshaft clockwise.
- Turning the Crankshaft counter-clockwise before building up oil pressure in the hydraulic timing chain tensioner may result in the chain disengaging from the sprocket teeth.
Install the Timing Chain Cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
NOTE:
- Refill Engine Oil.
- Clean the battery posts and cable terminals with sandpaper. Assemble and then apply grease to prevent corrosion.
- Inspect for fuel leakage.
  - After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and that the fuel line is pressurized.
  - Repeat this operation two or three times, then check for fuel leakage at any point in the fuel lines.
- Refill radiator and reservoir tank with engine coolant.
- Bleed air from the cooling system.
  - Start Engine and let it run until it warms up. (Until the radiator fan operates 3 or 4 times).
  - Turn OFF the Engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
  - Put radiator cap on tightly, then run the engine again and check for leaks.
