Automatic Transmission Control System
>>
Line Pressure Control Solenoid Valve (Line_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

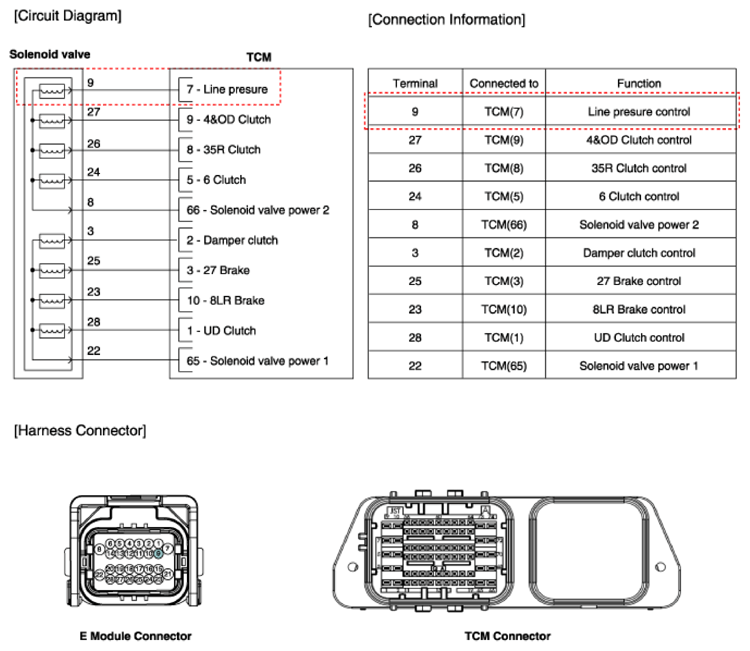

Fig 1: Line Pressure Control Solenoid Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
