Component Location

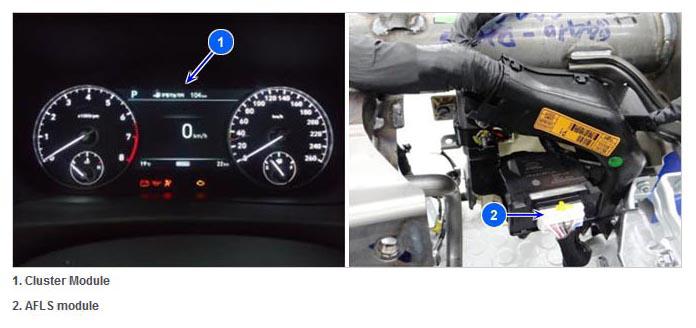

Fig 1: Locating Cluster Module And AFLS Module Components

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Cluster: "INSTRUMENT CLUSTER"
AFLS (Adaptive Front Lighting System): "ADAPTIVE FRONT LIGHTING MODULE"
