Component Location

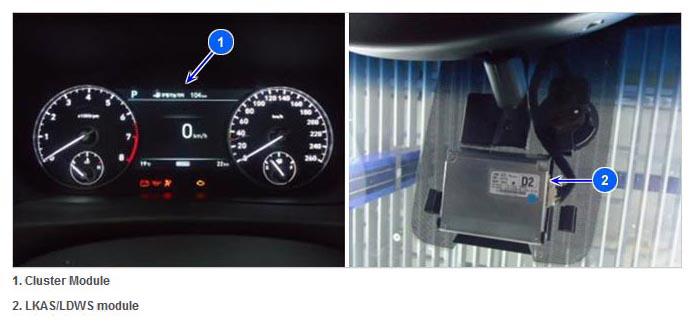

Fig 1: Locating Cluster And LKAS/LDWS Modules Component

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Cluster: "INSTRUMENT CLUSTER"
LKAS (Lane Keeping Assist System): "LANE KEEPING ASSIST MODULE"
LDWS: Lane Departure Warning System
