Components and Components Location: Components

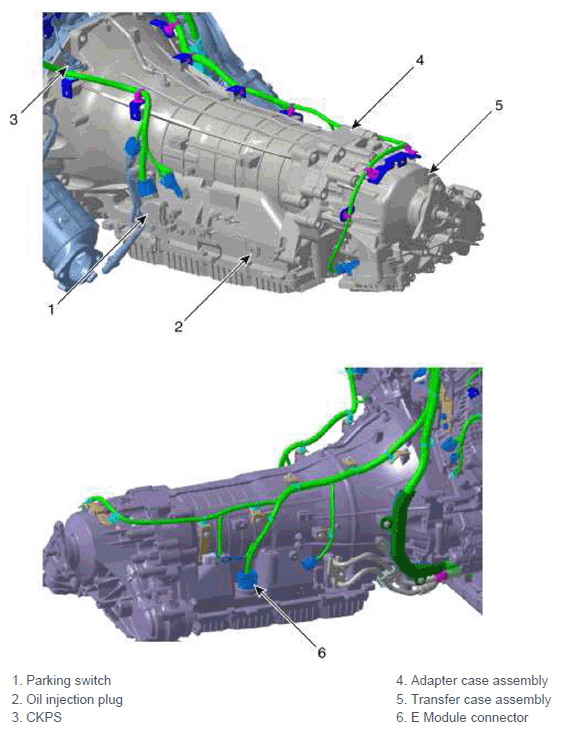

Fig 1: Automatic Transmission Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
