Signal Waveform & Data

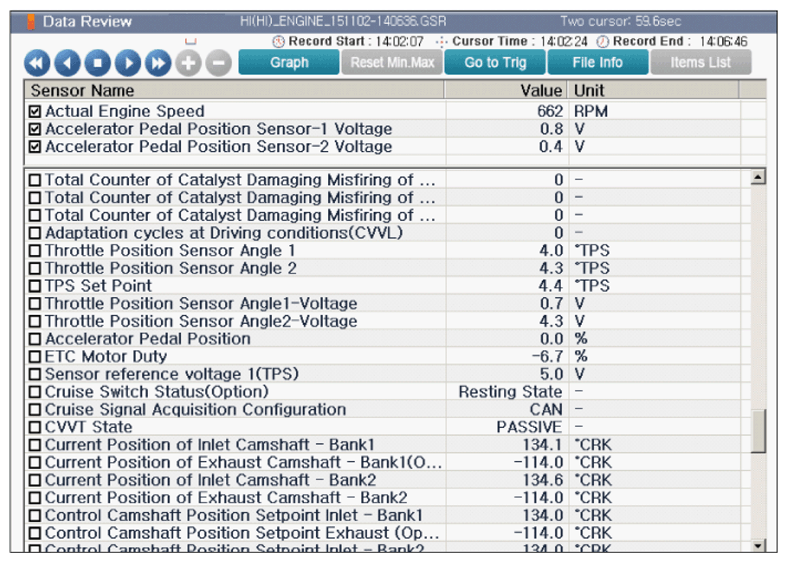

G12721828Courtesy of HYUNDAI MOTOR AMERICA

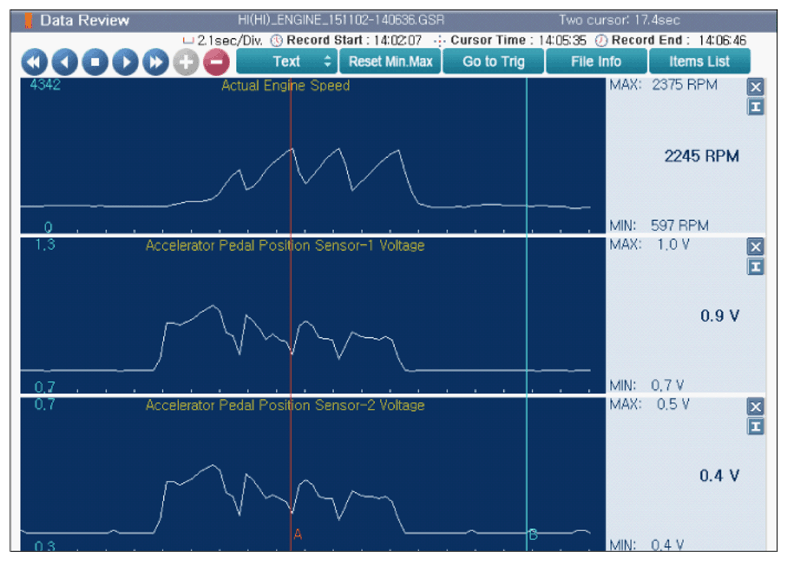

G12721829Courtesy of HYUNDAI MOTOR AMERICA

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
