Repair Procedures: Removal

  1. Turn the ignition switch OFF.

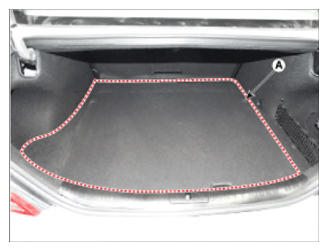

  2. Remove the luggage covering (A).
    G13539124Courtesy of HYUNDAI MOTOR AMERICA

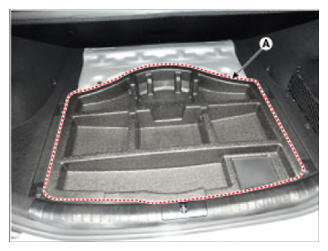

  3. Remove the luggage center tray (A).
    G13539125Courtesy of HYUNDAI MOTOR AMERICA

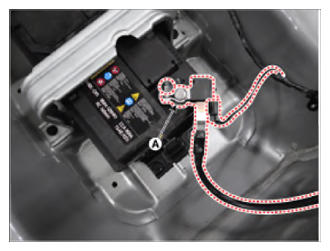

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G13539126Courtesy of HYUNDAI MOTOR AMERICA

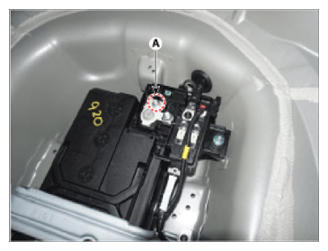

  5. Disconnect the battery positive (+) terminal (A).
    G13539127Courtesy of HYUNDAI MOTOR AMERICA

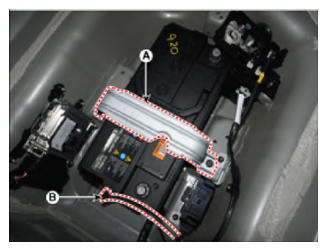

  6. Disconnect the vent hose (B).
  7. Remove the mounting band (A).
    G13539128Courtesy of HYUNDAI MOTOR AMERICA

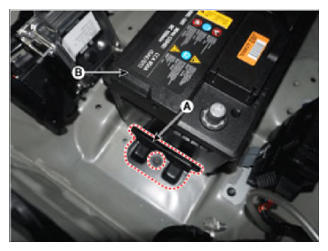

  8. Remove the mounting bracket (A) and then remove the battery (B).
    G13539129Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the battery.
