Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the intake manifold.

    (Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

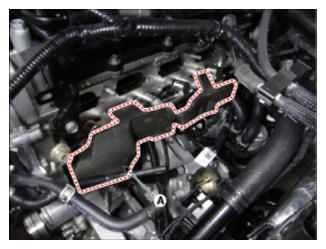

  4. Remove the delivery pipe foam (A).
    G13539617Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the cowl top cover assembly.

    (Refer to Body - "COWL TOP COVER ")

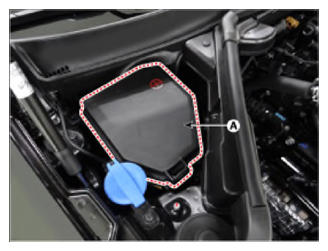

  6. Remove the engine box cover (A).
    G13539618Courtesy of HYUNDAI MOTOR AMERICA

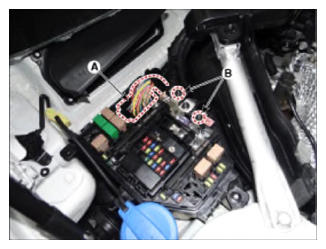

  7. Disconnect the front control connector (A).
  8. Remove the ground terminal nuts (B).
    G13539619Courtesy of HYUNDAI MOTOR AMERICA

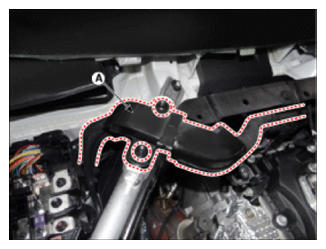

  9. Remove the wiring protector (A).
    G13539620Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the high pressure fuel pipe.

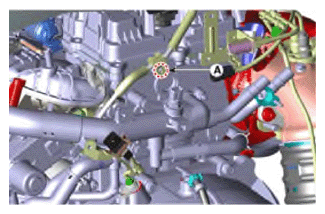

    1. Remove the high pressure fuel pipe mounting bolt (A).
      G13539621Courtesy of HYUNDAI MOTOR AMERICA

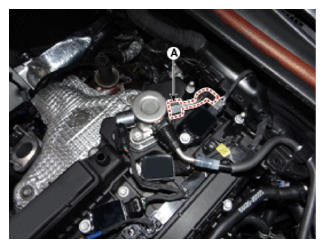

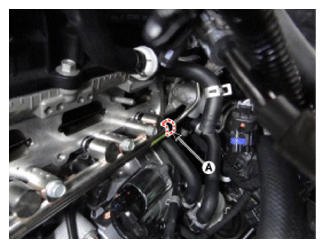

    2. Remove the high pressure fuel pipe flange nut (A).
      G13539622Courtesy of HYUNDAI MOTOR AMERICA
      G13539623Courtesy of HYUNDAI MOTOR AMERICA

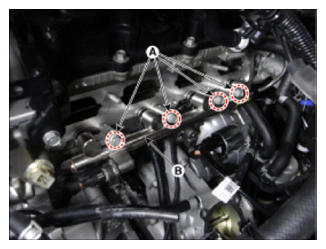

  11. Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.
    G13539624Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the injector & rail pressure sensor connector (A).
  13. Remove the injector (B) from the delivery pipe.
    G13539625Courtesy of HYUNDAI MOTOR AMERICA
