Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

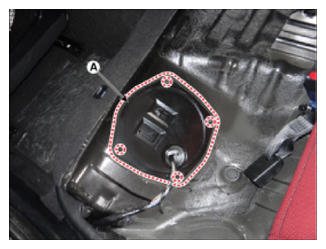

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G13539563Courtesy of HYUNDAI MOTOR AMERICA

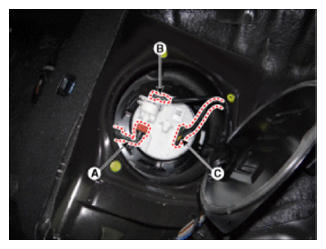

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G13539564Courtesy of HYUNDAI MOTOR AMERICA

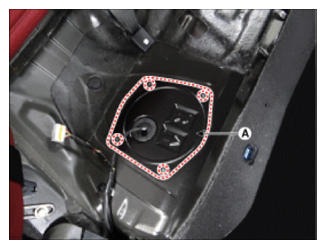

  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13539565Courtesy of HYUNDAI MOTOR AMERICA

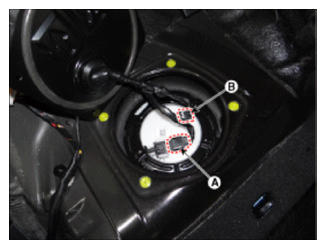

  9. Disconnect the sub fuel sender connector (A) and fuel tank pressure (B).
    G13539566Courtesy of HYUNDAI MOTOR AMERICA
  10. Lift the vehicle.
  11. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

  12. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

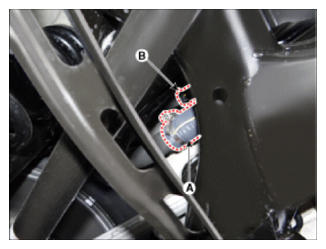

  13. Disconnect the fuel filler hose (A) and leveling hose (B).
    G13539567Courtesy of HYUNDAI MOTOR AMERICA

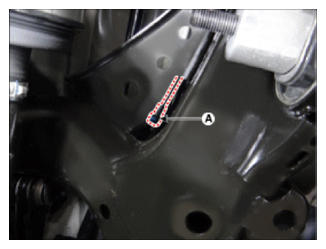

  14. Disconnect the ventilation (A).
    G13539568Courtesy of HYUNDAI MOTOR AMERICA

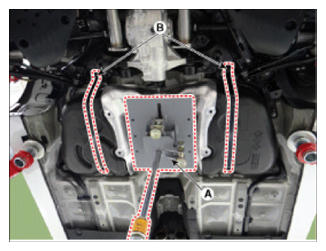

  15. Support the fuel tank with jack (A).
  16. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
    G13539569Courtesy of HYUNDAI MOTOR AMERICA

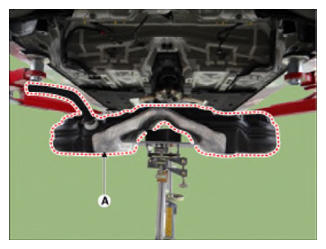

  17. Remove the fuel tank (A).
    G13539570Courtesy of HYUNDAI MOTOR AMERICA
