Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

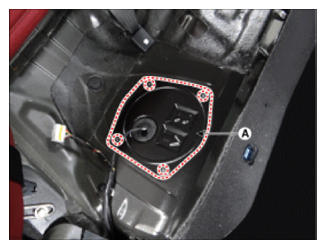

  4. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13539576Courtesy of HYUNDAI MOTOR AMERICA

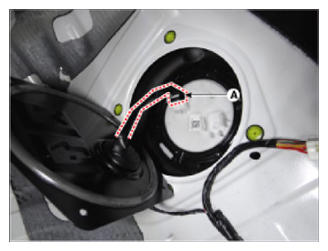

  5. Disconnect the sub fuel sender connector (A).
    G13539577Courtesy of HYUNDAI MOTOR AMERICA

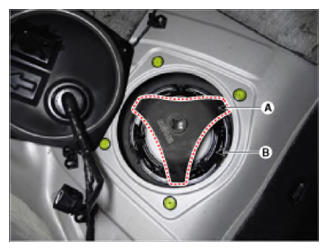

  6. Remove the locking ring (B) by using the special service tool (A) [No.: 09310-B8100].
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G13539578Courtesy of HYUNDAI MOTOR AMERICA

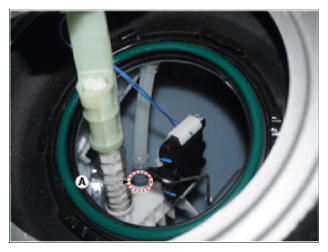

  7. Disconnect the quick-connect (A).
    G13539579Courtesy of HYUNDAI MOTOR AMERICA

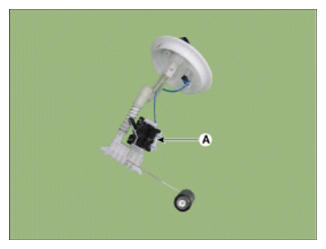

  8. Remove the sub fuel sender (A).
    G13539580Courtesy of HYUNDAI MOTOR AMERICA
