Front Optical Camera

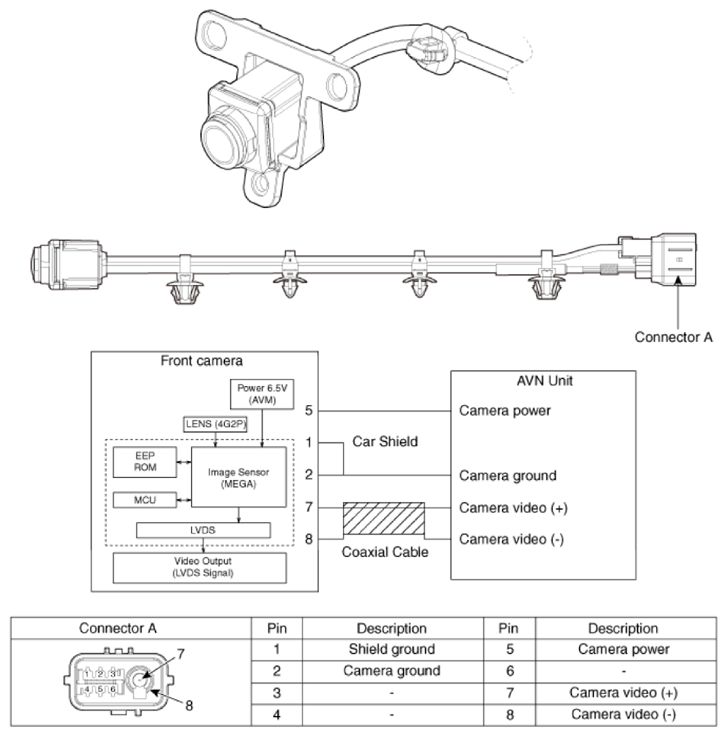

Fig 1: Pantoscopic Camera (Front) Connector End View And Terminal Description
G13542321Courtesy of HYUNDAI MOTOR AMERICA
