Components & Components Location: Components

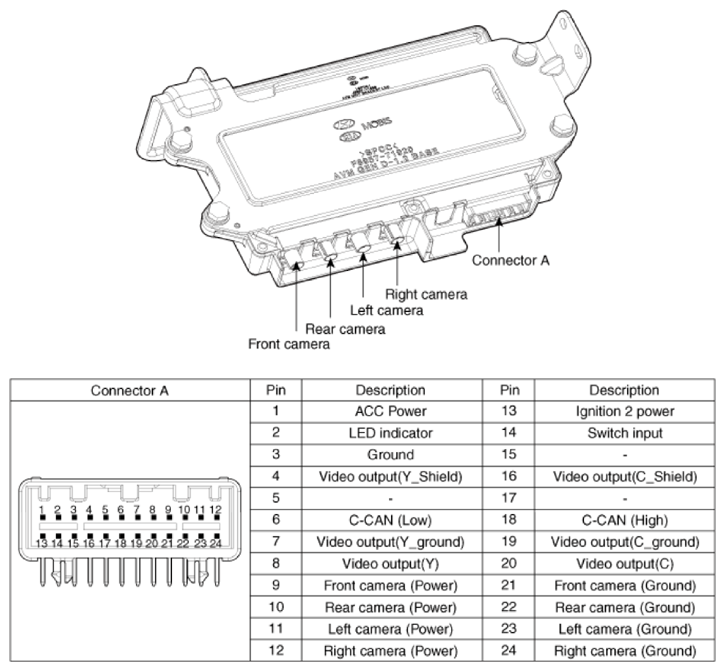

Fig 1: Surround View Monitoring Unit Connector End View And Terminal Description
G13542315G13542316G13542317G13542318G13542319Courtesy of HYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICA
Front camera (White) No. Description
G13542316Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera video input
2 housing shield ground
Rear camera (Blue) No. Description
G13542317Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera video input
2 housing shield ground
Left camera (Green) No. Description
G13542318Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera video input
2 housing shield ground
Right camera (Brown) No. Description
G13542319Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera video input
2 housing shield ground
