Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")

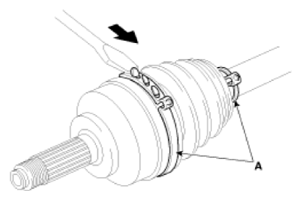

Remove the BJ boot band (A) by using the driver (-).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the BJ boot.
Install in the reverse order of removal.
NOTE:
- The boot band should be replaced with a new one.
- Do not disassemble the BJ assembly.
