Repair Procedures: Removal
WARNING:
- In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the surge tank.
(Refer to Fuel Delivery System - "SURGE TANK ")
- Remove the intake manifold.
(Refer to Engine Mechanical System - INTAKE MANIFOLD ")
- Remove the high pressure fuel pipe.
(Refer to Engine Mechanical System - HIGH PRESSURE FUEL PUMP ")

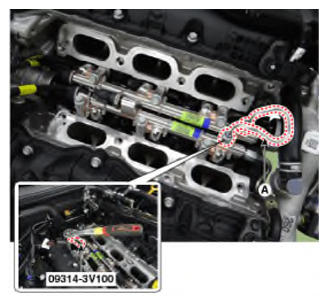

- Remove the high pressure pipe flange nut (A) in order of A with the special service tool [SST No.: 09314-3V100]

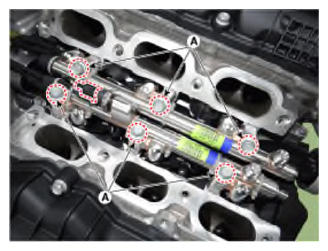

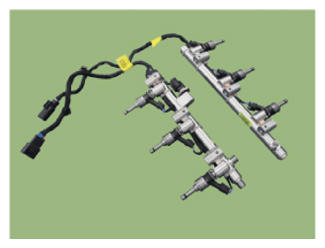

- Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.
