Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the fuel filler cap after opening the fuel filler door.
  3. Lift the vehicle.
  4. Remove the rear-left wheel & tire and wheel house cover.

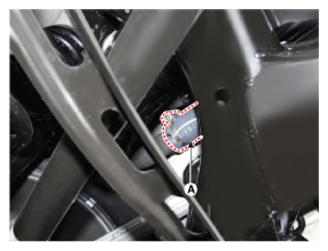

  5. Disconnect the fuel filler hose (A).
    G13543545Courtesy of HYUNDAI MOTOR AMERICA

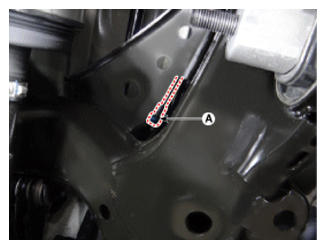

  6. Disconnect the vapor tube (A).
    G13543546Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
    G13543547Courtesy of HYUNDAI MOTOR AMERICA
