Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT CUSHION COVER ")

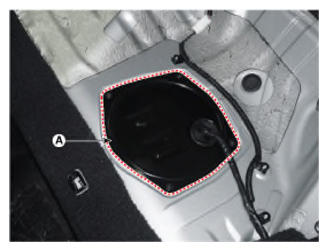

- Remove the fuel pump service cover (A) after loosening the mounting screws.

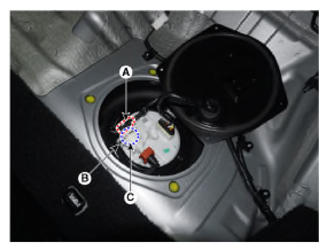

- Disconnect the fuel feed quick-connector (A).
- Remove the fuel pressure sensor fixing pin (B).
- Remove the fuel pressure sensor (C) from the fuel pump.
