Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT CUSHION COVER ")

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.

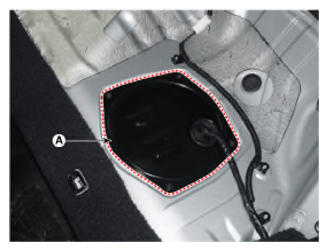

    G13543495Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).

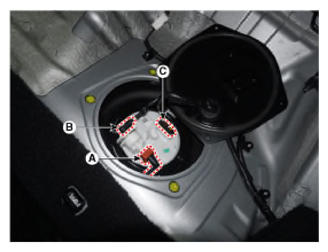

    G13543496Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the sub fuel sender service cover (A) after loosening the mounting screws.

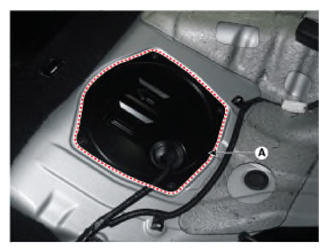

    G13543497Courtesy of HYUNDAI MOTOR AMERICA
  9. Disconnect the sub fuel sender connector (A).

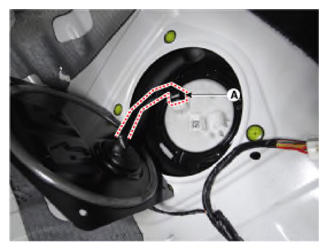

    G13543498Courtesy of HYUNDAI MOTOR AMERICA
  10. Lift the vehicle.
  11. Remove the side under cover.
  12. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

  13. Remove the propeller shaft assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

  14. Disconnect the fuel filler hose (A) and levelling hose (B).

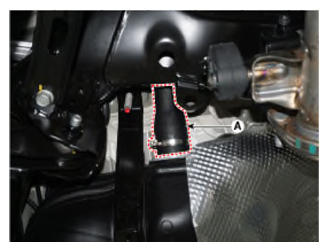

    G13543499Courtesy of HYUNDAI MOTOR AMERICA

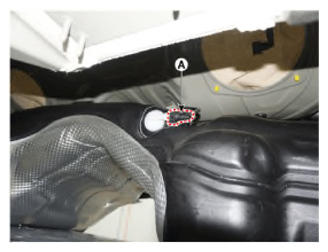

    G13543500Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the ventilation (A).

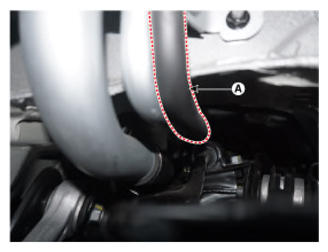

    G13543501Courtesy of HYUNDAI MOTOR AMERICA
  16. Support the fuel tank with jack (A).
  17. Remove the fuel tank installation nut (B) and then loosen the fuel tank.

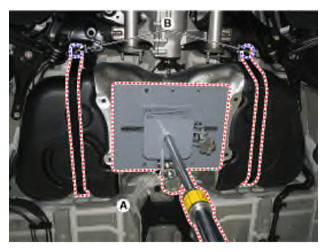

    G13543502Courtesy of HYUNDAI MOTOR AMERICA
