Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the manual transmission assembly.
(Refer to Manual Transmission System - "MANUAL TRANSMISSION ")

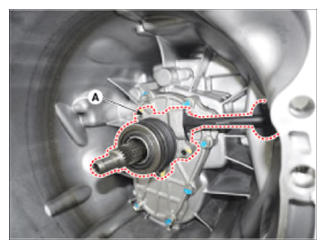

- Loosen the concentric slave cylinder assembly mounting bolts (A).
Tightening torque :
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

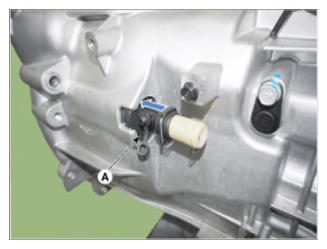

- Remove the guide (A).
- Remove the concentric slave cylinder assembly (A) from the manual transmission.
