Connector Assembly Status Test

  1. Remove the Connectors (A) and reinstall it.
    2. Fig 1: Locating The Connectors (1 Of 2)
    G00583364Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Locating The Connectors (2 Of 2)
    G00583365Courtesy of HYUNDAI MOTOR AMERICA

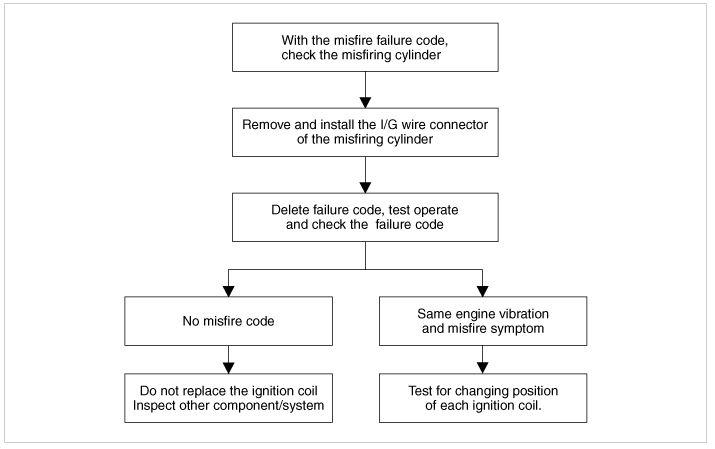

    Fig 3: Connector Status Test
    G00583366Courtesy of HYUNDAI MOTOR AMERICA
