Component Location

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

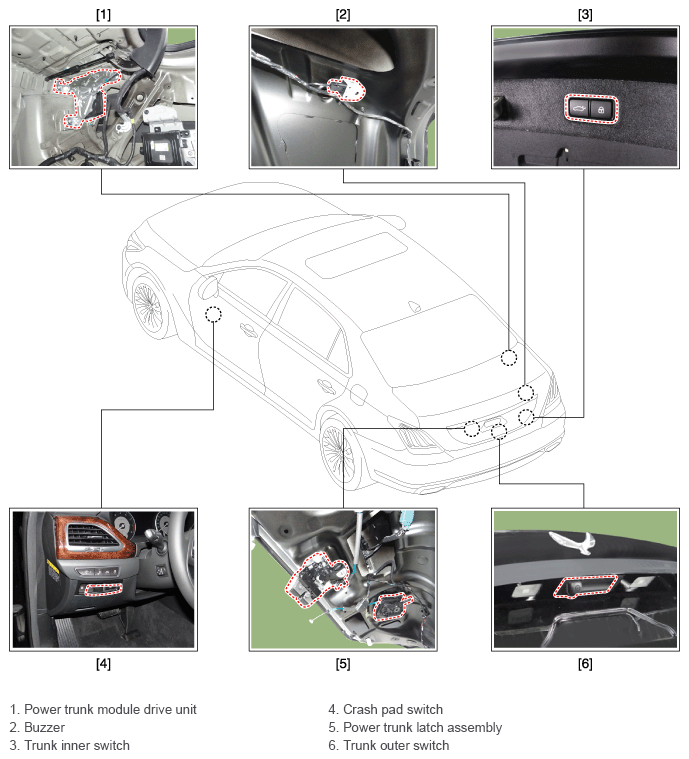

Fig 1: Locating Power Trunk Module Components
G11419629Courtesy of HYUNDAI MOTOR AMERICA
