Section 209 (Power Trunk Module)
>>
Power Trunk Module Drive Unit
>>
Components and Components Location
>>
Component Location
>>
Power Trunk Module (PTM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Trunk Module (PTM)
WARNING:
This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

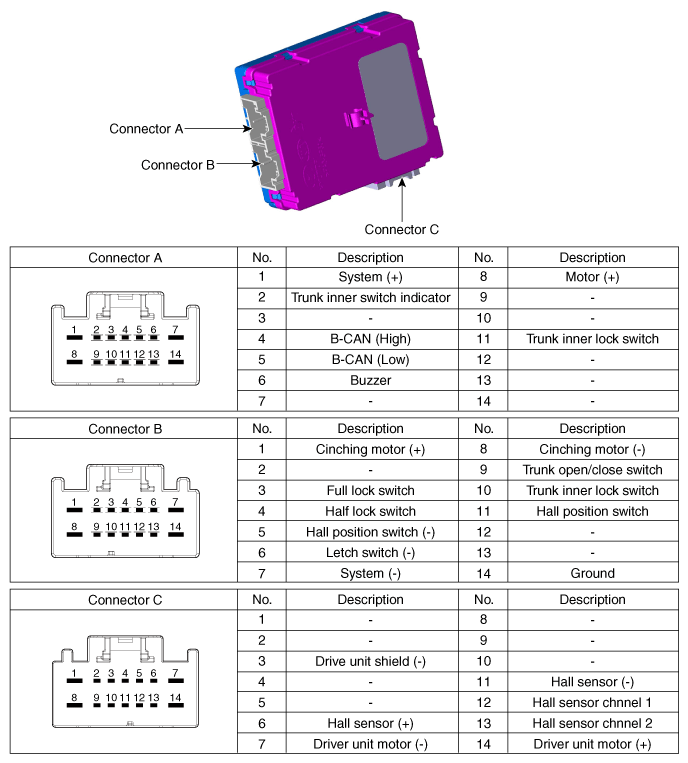

Fig 1: Locating Power Trunk Module (PTM) Connectors
Courtesy of HYUNDAI MOTOR AMERICA
