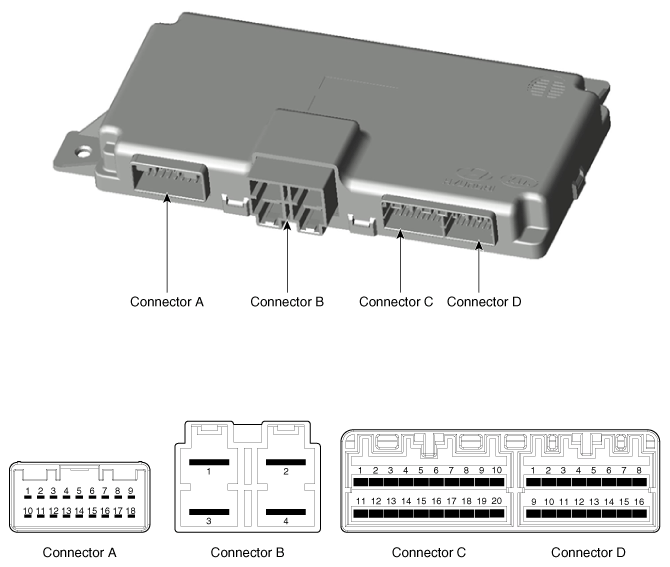

Driver memory Power Seat Module (DPSM)
| No | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | - | Ground | - | - |
| 2 | Head rest (Forward) | Ground | B-CAN (High) | - |
| 3 | Head rest (Up) | Battery (+) | B-CAN (Low) | Cushion extension hall sensor |
| 4 | Shoulder rest (Forward) | Battery (+) | LIN Communication | Head rest hall sensor (Up/Down) |
| 5 | Cushion extension (Forward) | - | - | |
| 6 | Rear height (Up) | - | Hall sensor power | |
| 7 | Front tilt (Up) | - | Ignition 1 | |
| 8 | Reclining (Forward) | - | Battery (+) | |
| 9 | Slide (Forward) | Slide hall sensor | Ground | |
| 10 | - | Front tilt hall sensor | - | |
| 11 | Head rest (Backward) | - | Shoulder rest hall sensor | |
| 12 | Head rest (Down) | - | Head rest hall sensor (slide) | |
| 13 | Shoulder rest (Backward) | - | - | |
| 14 | Cushion extension (Backward) | - | - | |
| 15 | Rear height (Down) | - | - | |
| 16 | Front tilt (Down) | - | - | |
| 17 | Reclining (Backward) | - | ||
| 18 | Slide (Backward) | |||
| 19 | Reclining hall sensor | |||
| 20 | Rear height hall sensor |
