BSD Variant coding

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

After replacing the rear bumper or BSD unit, must be performed the "Variant Coding" procedure.

Check the options installed on the vehicle before proceeding to the BSD variant coding.
Select variant coding mode to perform.
Follow the guidance of on-screen information and stand by. Wait until it is completely saved and then exit.

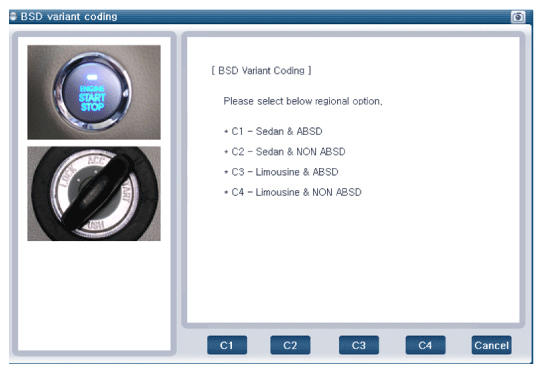

Fig 1: Screen Display - BSD Variant Coding (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

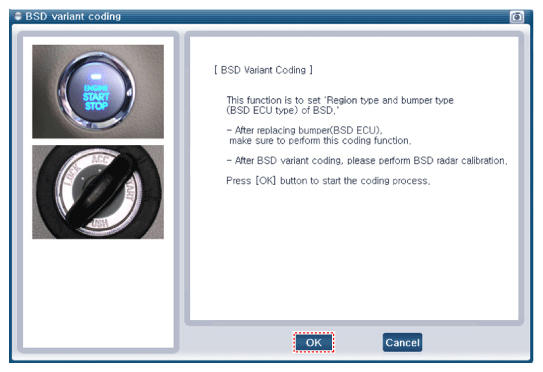

Fig 2: Screen Display - BSD Variant Coding (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

After BSD variant coding, must be performed the "BSD radar calibration" procedure.
