Neutralization Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".
    G12658588Courtesy of HYUNDAI MOTOR AMERICA

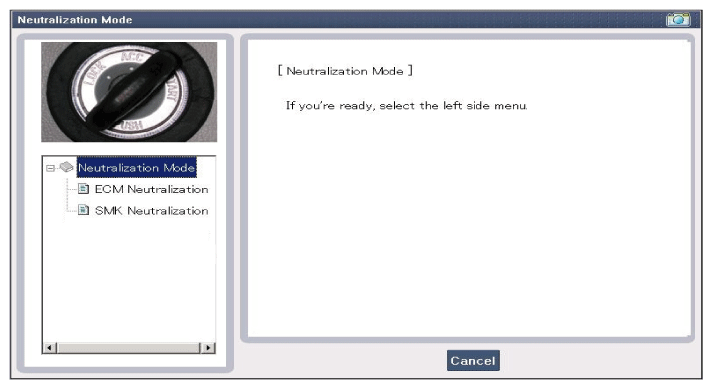

    G12658589Courtesy of HYUNDAI MOTOR AMERICA

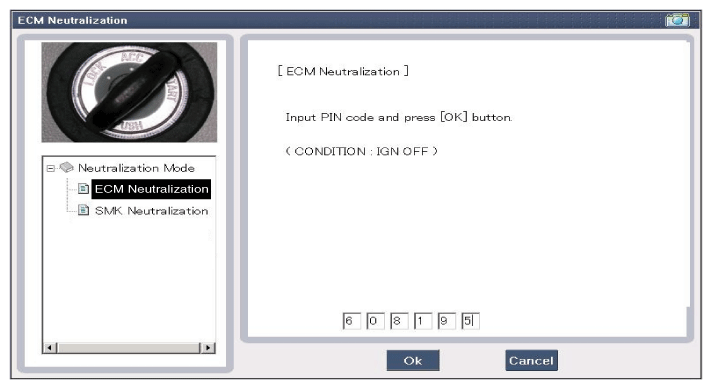

    G12658590Courtesy of HYUNDAI MOTOR AMERICA

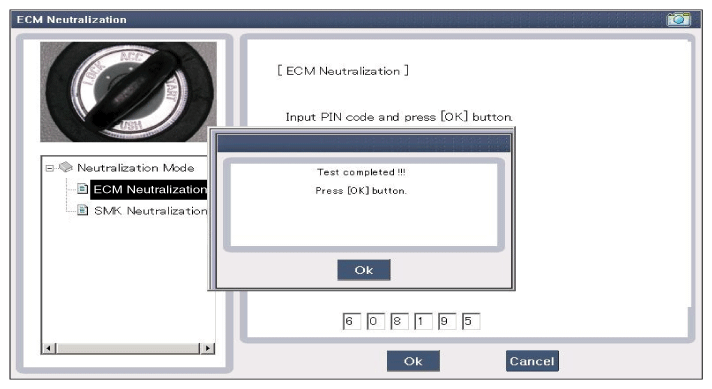

    G12658591Courtesy of HYUNDAI MOTOR AMERICA

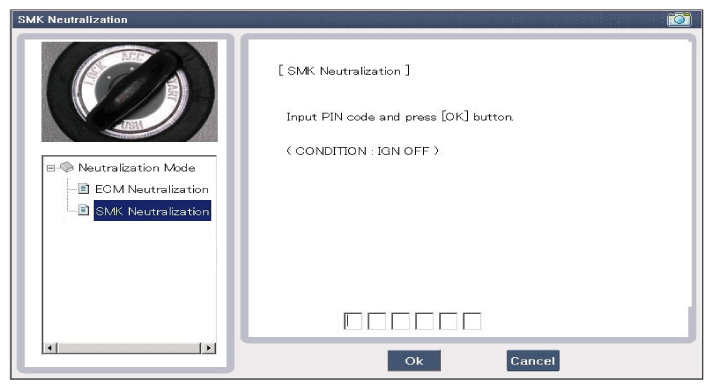

    G12658592Courtesy of HYUNDAI MOTOR AMERICA
    G12658593Courtesy of HYUNDAI MOTOR AMERICA

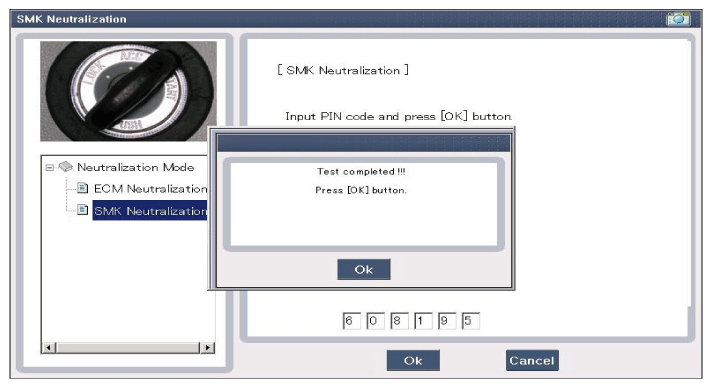

    G12658594Courtesy of HYUNDAI MOTOR AMERICA
