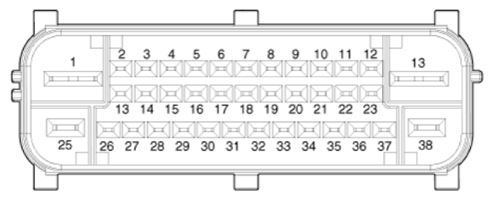

Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description	Current (m/A) MAX	Resistance (m/Ω)
1	Battery 2 (+)	137	10
2	POWERTRAIN CAN LOW	30	250
3	-	-	-
4	-	-	-
5	-	-
6	-	-	-
7	-	-	-
8	-	-	-
9	-	-	-
10	-	-	-
11	Parking brake switch	10	250
12	-	-	-
13	Ground	137	10
14	POWERTRAIN CAN HIGH	30	250
15	Auto Hold Switch	10	250
16	Stop Lamp Switch	10	250
17	Wheel speed sensor output	16	250
18	Front wheel Sensor power RH	30	250
19	Rear wheel Sensor power RH	30	250
20	Rear wheel Sensor signal LH	16.8	250
21	Front wheel Sensor signal LH	16.8	250
22	C-CAN HIGH	30	250
23	-	-	-
24	-	-	-
25	Battery 1 (+)	40	10
26	-	-	-
27	-	-	-
28	-	-	-
29	HECU (IGN)	50	60
30	Vacuum pump switch signal	10	250
31	Front wheel Sensor signal RH	16.8	250
32	Rear wheel Sensor signal RH	16.8	250
33	Rear wheel Sensor power LH	30	250
34	Front wheel Sensor power LH	30	250
35	C-CAN LOW	30	250
36	-	-	-
37	-	-	-
38	Ground	40	10
