Repair Procedures: Installation

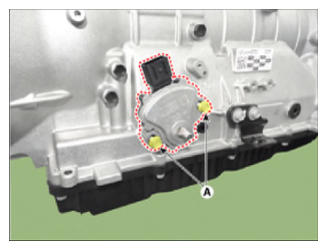

- Install the parking switch. When installing, tighten the inhibitor assembly mounting bolts (A) loosely to allow any necessary adjustments to be made.
- Install the parking release lever (B).

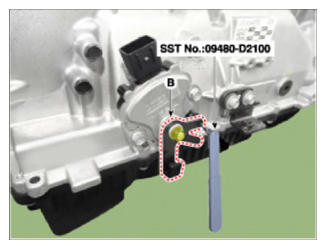

- Install the SST No.: 09480-D2100 or 0.1969 in. (5 mm) bolt after setting parking release lever (B) in the "P".

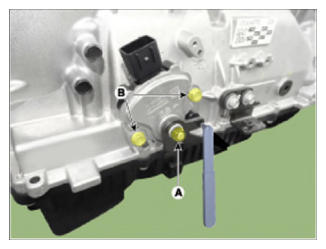

- Tighten mounting nut (A) of the parking release lever to the specified torque.
Tightening torque:
13.7-17.7 N.m (1.4-1.8 kgf.m, 10.1 - 13.0 lb-ft)
- Tighten the bolt (B) to the specified torque.
Tightening torque:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb-ft)
- Remove the SST No.: 09480-D2100 or 0.1969 in. (5 mm) bolt.

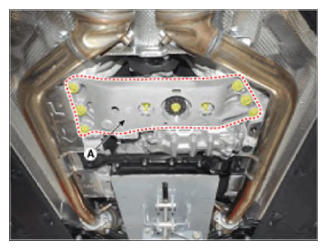

- Install the cross member (A).

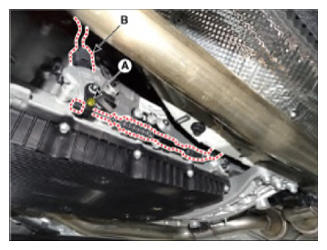

- Install the parking release cable by installing the fastener (A).
- Connect the inhibitor switch connector (B).
- Connect the negative (-) battery cable.
