Genesis
>>
2021
>>
G70 2.0T, RWD, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Delivery System - 2.0L
>>
Components And Components Location
>>
Components Location
>>
Low Pressure Fuel Pump
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

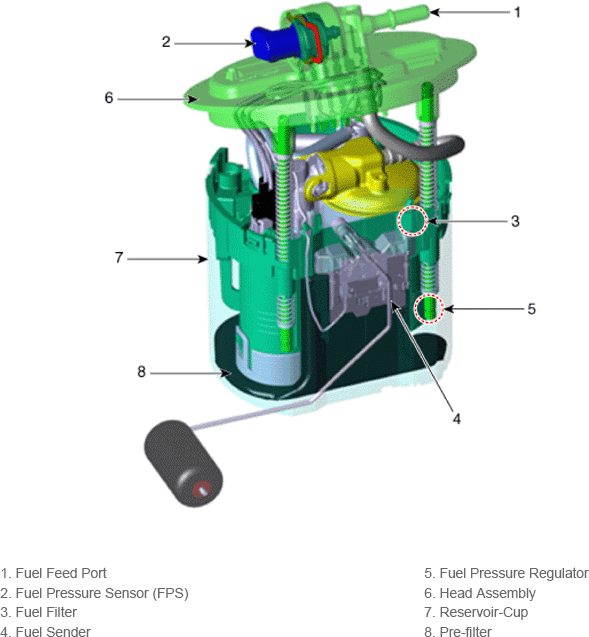

Low Pressure Fuel Pump
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
