Description And Operation: Operation

Non - M/T

How to use:

  1. Engine Auto-Stop: D-range + brake pedal is pressed.
    G14179356Courtesy of HYUNDAI MOTOR AMERICA
  2. Engine Auto-Start
    1. Brake pedal is released.
    2. Brake pedal is pressed + Manual range (Sports mode)
    3. Brake pedal is pressed + R range

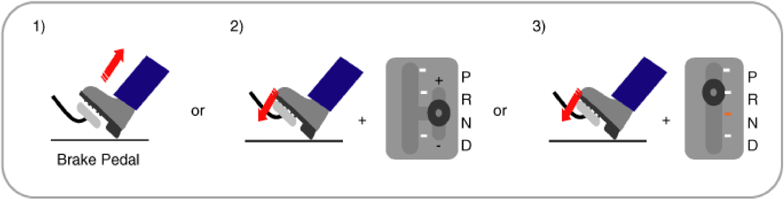

    G14179357Courtesy of HYUNDAI MOTOR AMERICA

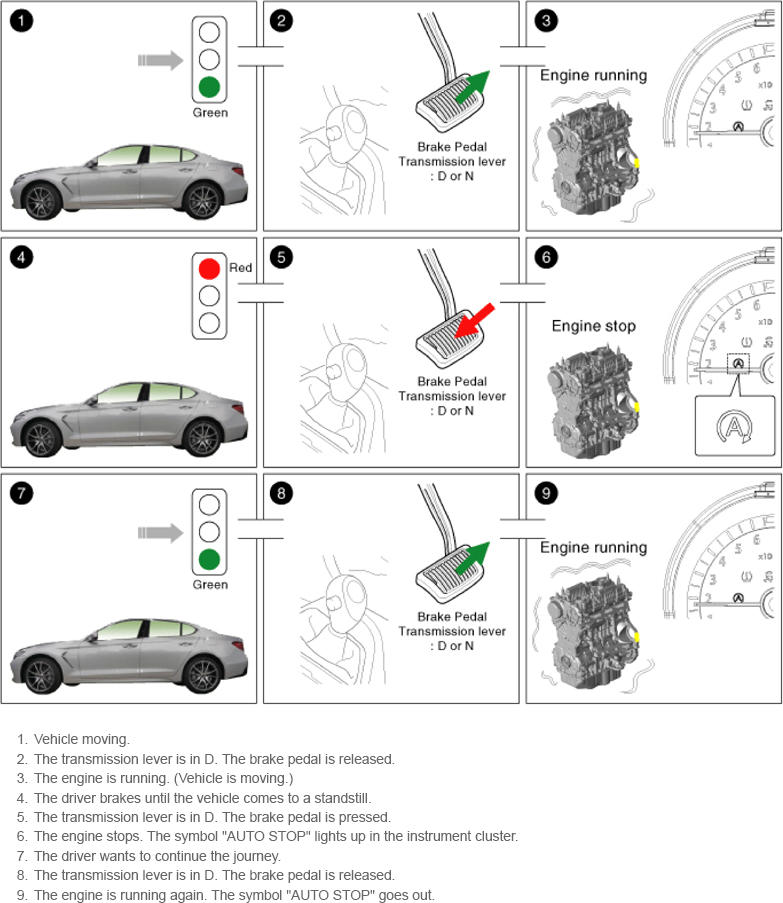

G14179358Courtesy of HYUNDAI MOTOR AMERICA
