Repair Procedures: Removal

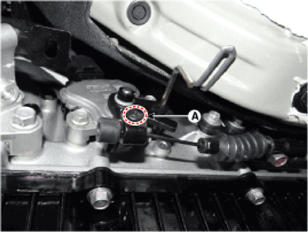

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G14179855Courtesy of HYUNDAI MOTOR AMERICA

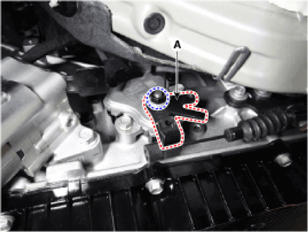

  2. Remove the parking release lever (A) after loosening the nut.
    G14179856Courtesy of HYUNDAI MOTOR AMERICA

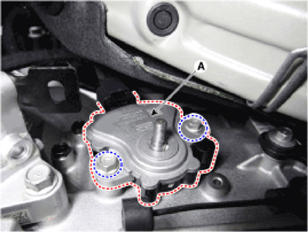

  3. Remove the parking switch (A) after loosening the bolts.
    G14179857Courtesy of HYUNDAI MOTOR AMERICA

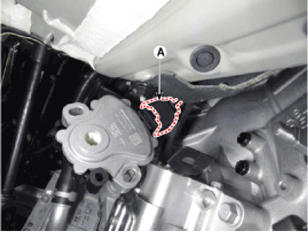

  4. Disconnect the parking switch connector (A).
    G14179858Courtesy of HYUNDAI MOTOR AMERICA
