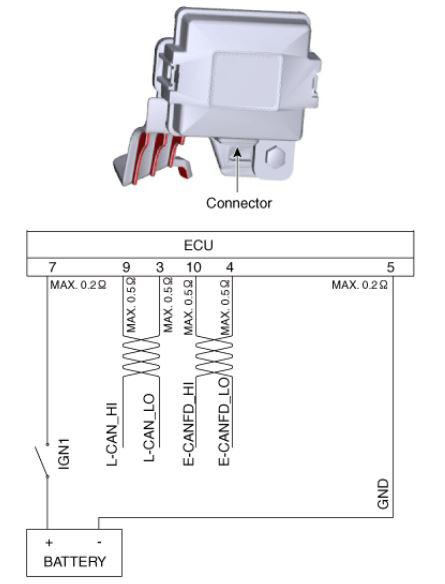

Components And Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Connector
I NO
Description
Courtesy of HYUNDAI MOTOR AMERICA
1
-
2
-
3
L-CAN (Low)
4
E-CAN (Low)
5
-
6
Ground
7
IGN 1
8
-
9
L-CAN (High)
10
E-CANFD (High)
11
-
12
-
