Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

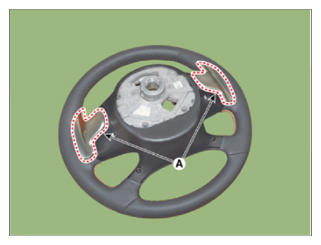

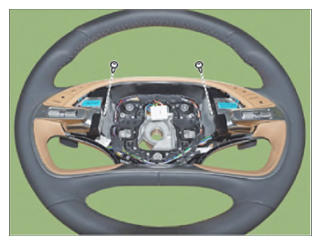

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G15555318Courtesy of HYUNDAI MOTOR AMERICA
    G15555319Courtesy of HYUNDAI MOTOR AMERICA

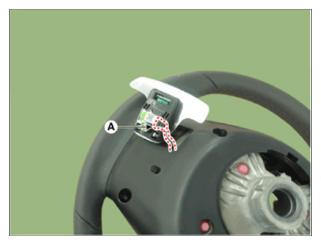

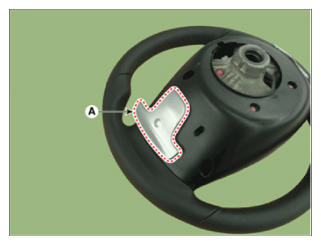

  5. Disconnect the paddle shift switch connector (A).
    G15555320Courtesy of HYUNDAI MOTOR AMERICA
    G15555321Courtesy of HYUNDAI MOTOR AMERICA

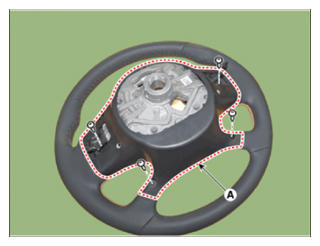

  6. Loosen the mounting screws and remove the lower cover (A).
    G15555322Courtesy of HYUNDAI MOTOR AMERICA

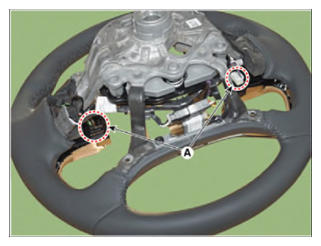

  7. Disconnect the remote control switch connector (A).
    G15555323Courtesy of HYUNDAI MOTOR AMERICA
