Repair Procedures: Removal
CAUTION:
- When removing with the screwdriver or remover, wrap the protective tape on the tools.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.
- Remove the heater & air conditioning control unit. (Refer to REPLACEMENT Body - "Heater & A/C Control Unit")

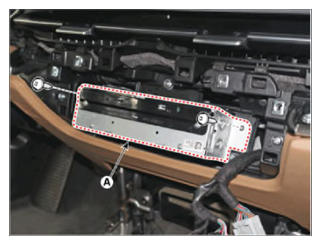

- Loosen the mounting screws and remove the AVN Head unit (A).

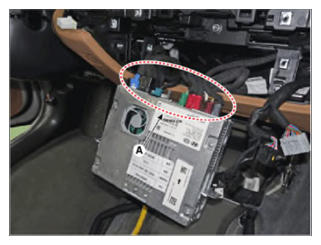

- Disconnect the AVN Head unit connectors (A).
