Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat back board. (Refer to Body - "FRONT SEAT ")

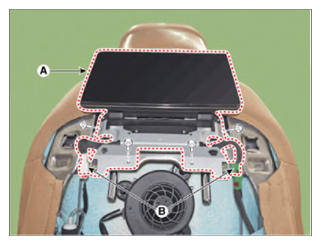

  3. Loosen the mounting bolts, disconnect the rear monitor connectors (B).
  4. Remove the rear monitor (A).
    G15549960Courtesy of HYUNDAI MOTOR AMERICA
