Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel. (Refer to Steering System - "STEERING WHEEL ")

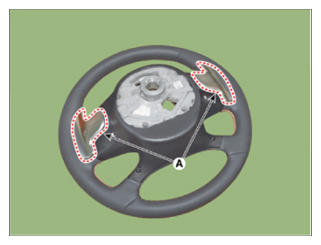

  3. Loosen the mounting screws and remove the paddle shift (A).
    G15549977Courtesy of HYUNDAI MOTOR AMERICA
    G15549978Courtesy of HYUNDAI MOTOR AMERICA

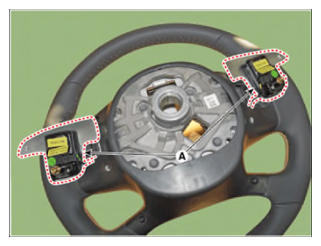

  4. Disconnect the paddle shift connector and remove the paddle shift switch (A).
    G15549979Courtesy of HYUNDAI MOTOR AMERICA

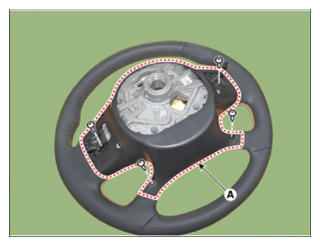

  5. Loosen the mounting screws and remove the steering lower cover (A).
    G15549980Courtesy of HYUNDAI MOTOR AMERICA

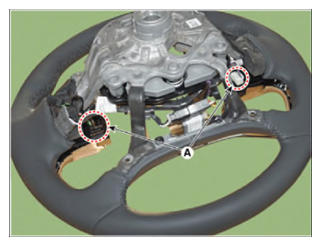

  6. Disconnect the steering wheel switch connector (A) and remove the steering wheel switch.
    G15549981Courtesy of HYUNDAI MOTOR AMERICA
