Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

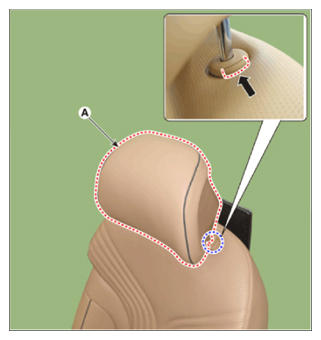

Remove the front seat headrest (A) by pulling it upward.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat lower protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

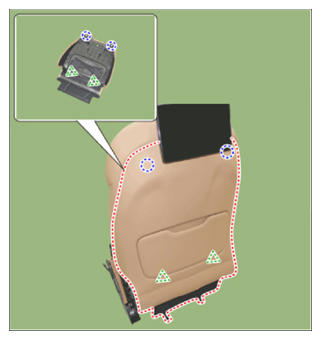

Remove the front seat back board (A).
NOTE:
- Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
- Be careful not to damage the fixing clips.
Courtesy of HYUNDAI MOTOR AMERICA

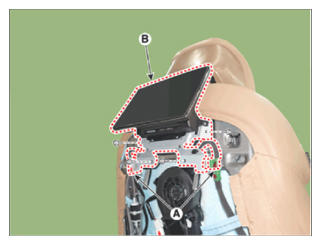

Press the lock pin and disconnect the connector (A), remove the LCD monitor (B).

Courtesy of HYUNDAI MOTOR AMERICA

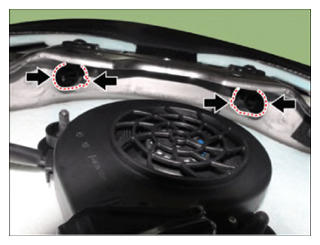

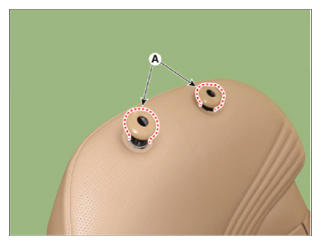

Press the both hook and remove the headrest guides (A) by pulling upward.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

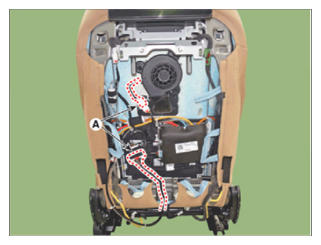

Press the lock pin, detach the various connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

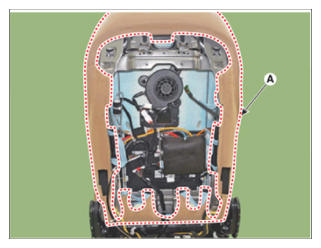

Separate the front seat back cover protector, remove the front seat back cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

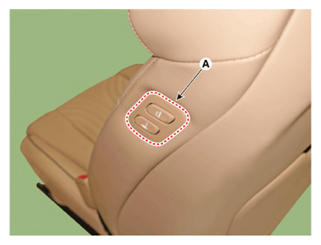

- In the case of a passenger seat, remove the walk in switch (A) and remove the seat back cover.
Courtesy of HYUNDAI MOTOR AMERICA

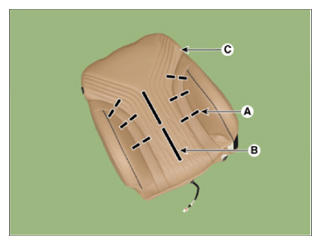

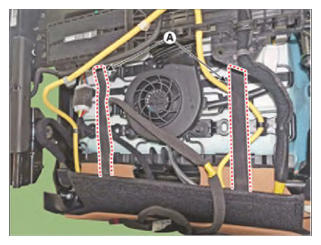

Remove the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
CAUTION:
- Make sure that the sponge insert wire is not dislocated.
Courtesy of HYUNDAI MOTOR AMERICA

Install in the reverse order of removal.

Information

Make sure that the connectors are connected completely
Replace any damaged clips.
To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).

Replace the hog-ring clips with new ones using special tool (C) (09880-4F000)

Courtesy of HYUNDAI MOTOR AMERICA
