Repair Procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to appropriate Rear Seat - "REPAIR PROCEDURES ")
- Remove the rear seat back assembly.
(Refer to appropriate Rear Seat - "REPAIR PROCEDURES ")
- Remove the rear console armrest assembly.
(Refer to Floor Console - "REAR CONSOLE ARMREST ASSEMBLY ")

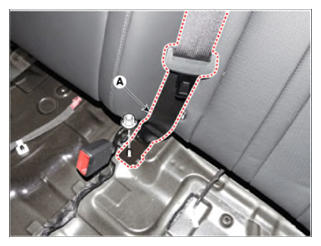

- Loosen the mounting bolt, remove the center seat belt lower anchor (A).
Tightening torque: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

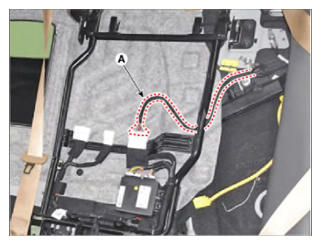

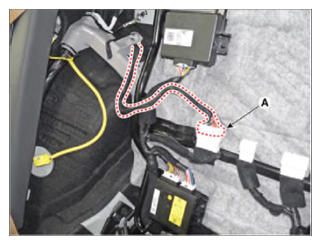

- Press the lock pin, separate the rear seat frame connector (A)
[LH]
[RH]

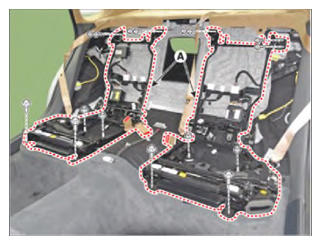

- After loosening the mounting bolts and nuts, remove the rear seat frame assembly (A).
Tightening torque: Bolt: 21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)
Nut: 9.6 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is plugged in properly.
